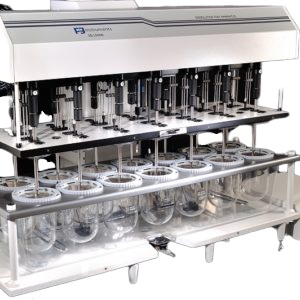

PG instruments DS 14000 정제 용해

General
- Control: Micro-Processor Controlled (advanced version of Micro-Processor)
- Temperature Range: 30°C to 40°C
- Temperature Resolution: 0.1°C
- Temperature Control Accuracy: +/-0.1°C
- Temperature Sensor: Pt-100 (RTD) Display: 40 x 2 line Back-Lit liquid crystal display (LCD)
- Keyboard: Alphanumeric splash-proof polyester soft keys
- Method Storage: 15 programs with parameters
- Data Storage: Available with Non-Volatile memory
- Water Bath: 29 litres capacity with built-in water level sensor
- Bath Circulation: Immersion Pump
- Paddle/Basket Shaft Speed: Range 20 to 250 RPM +/- 1%
- Sampling Time Selectivity: Fixed/Programmable (varying intervals)
- Time Interval Selectivity: In steps of one minute
- Sampling Volume Range: 0.5 – 25.5 ml
- Maximum Number of Intervals: 30
- Dissolution Process Time: 1 minute – 720 hours.
Report Format
- GLP & Pharmacopeia compliant
- Programme parameter report
- Evaluation Software including - Evaluation Program Parameter – Evaluation Report – Dissolution Profile
Output
- Printer: Compatible fordeskjet, inkjet and dot matrix printer
- Options: PC Connectivity
- Power: 120-230 VAC +/- 10%, 50Hz. – 60Hz.
Environmental Operating Conditions
- Operation: Laboratory and/or QC Environment
- Temperature: Ambient to 45°C
- Humidity: 5 to 90% non-condensing
- Dimensions: 115 x 60 x 70.5 cms (WxDxH)
 Weight: 140kgs. Approx.

Datasheet
