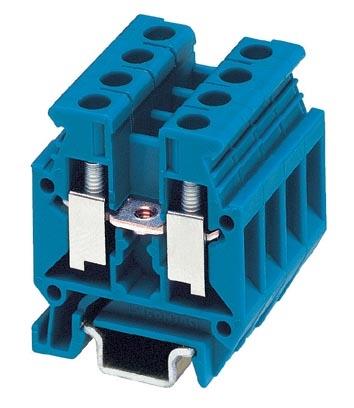

PHOENIX CONTACT 1402982 미니 피드 스루 터미널 블록 MBK 5/E-Z BU

Color: Blue

Pitch: 6.2 mm

Width: 6.2 mm

Height: 32 mm

Length: 28 mm

Unit Weight: 5.768 g

REACH - SVHC: Details

Current Rating: 32 A

Mounting Style: DIN Rail (NS 15)

Voltage Rating: 500 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 24 AWG to 10 AWG

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
