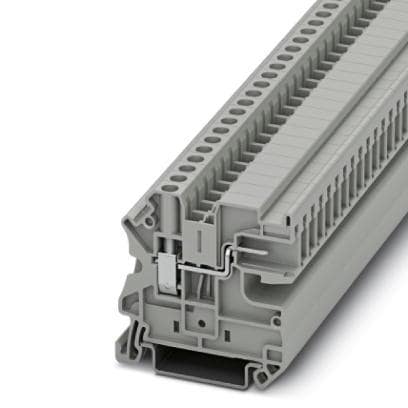

PHOENIX CONTACT 3001369 피드 스루 터미널 블록 UT 4/ 1P-H

Color: Gray

Width: 6.2 mm

Height: 47.5 mm

Length: 49.8 mm

Unit Weight: 8.335 g

REACH - SVHC: Details

Current Rating: 32 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 800 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position
