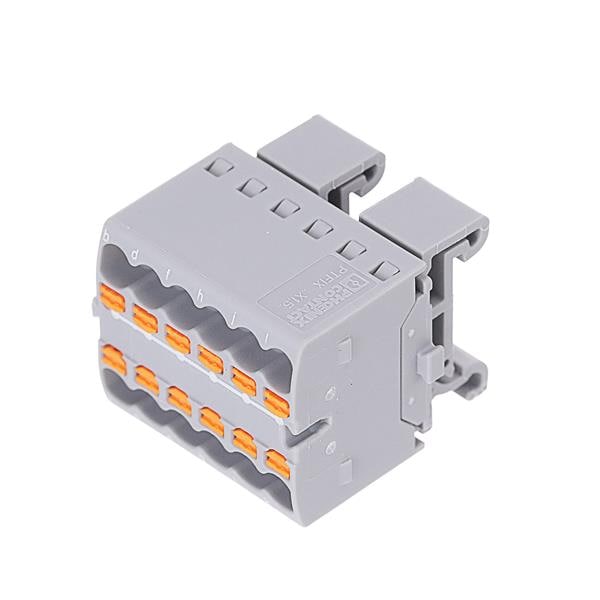

PHOENIX CONTACT 3002914 분배 블록 PTFIX 12X1,5-NS15AGY

Color: Gray

Width: 24.9 mm

Height: 27.2 mm

Length: 21.6 mm

Unit Weight: 10.262 g

Current Rating: 17.5 A

Mounting Style: DIN Rail (NS 15)

Voltage Rating: 500 V

Wire Gauge Max: 16 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 26 AWG to 16 AWG

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
