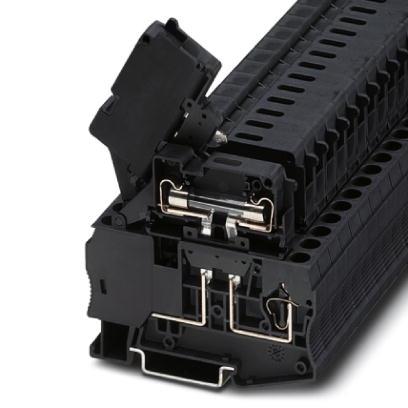

PHOENIX CONTACT 3035182 퓨즈 터미널 블록 ST 4-HESILED 60 (6,3X32)

Color: Black

Width: 8.2 mm

Height: 68.9 mm

Length: 76.5 mm

Unit Weight: 26.870 g

Current Rating: 10 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 1 Row

Wire Gauge Max: 10 AWG

Wire Gauge Min: 28 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 28 AWG to 10 AWG

Connection Method: Spring Cage

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
