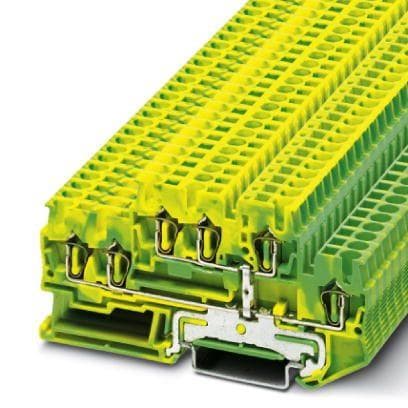

Color: Green, Yellow
Width: 5.2 mm
Height: 47.5 mm
Length: 91.5 mm
Unit Weight: 18.290 g
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Number of Rows: 2 Row
Wire Gauge Max: 12 AWG
Wire Gauge Min: 28 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 28 AWG to 12 AWG
Connection Method: Spring Cage
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
