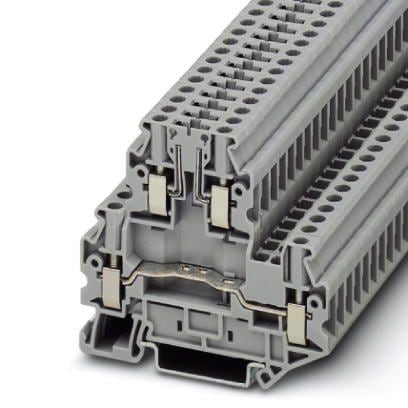

PHOENIX CONTACT 3044720 디스커넥트 터미널 블록 UTTB 4-TG DBL 레벨 6.2MM

Color: Gray

Width: 6.2 mm

Height: 64.4 mm

Length: 69.9 mm

Unit Weight: 20.060 g

REACH - SVHC: Details

Current Rating: 30 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 500 V

Wire Gauge Max: 10 AWG

Wire Gauge Min: 26 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 26 AWG to 10 AWG

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
