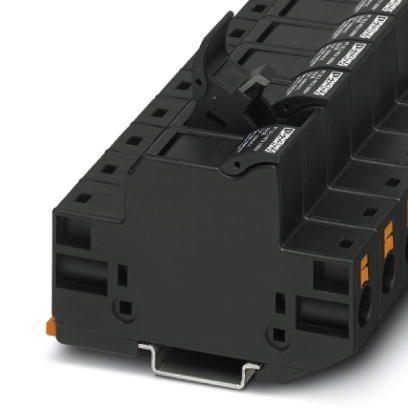

PHOENIX CONTACT 3062143 퓨즈 터미널 블록 PT 10,3-HESILED 1000V

Color: Black

Width: 17.6 mm

Height: 63 mm

Length: 87 mm

Unit Weight: 54.840 g

Current Rating: 20 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 1 kV

Wire Gauge Max: 6 AWG

Wire Gauge Min: 16 AWG

Housing Material: Polyamide (PA)

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
