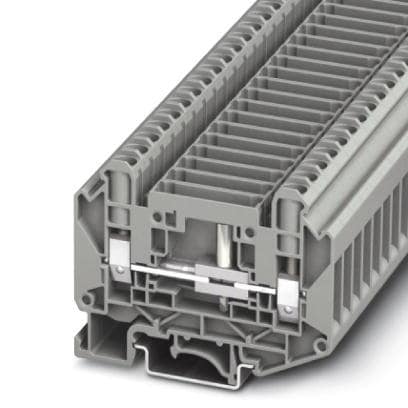

PHOENIX CONTACT 3070134 디스커넥트 터미널 블록 UT 6-T-HV

Color: Gray

Width: 8.2 mm

Height: 59.3 mm

Length: 72.6 mm

Unit Weight: 25.160 g

REACH - SVHC: Details

Current Rating: 41 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 1 kV

Wire Gauge Max: 8 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
