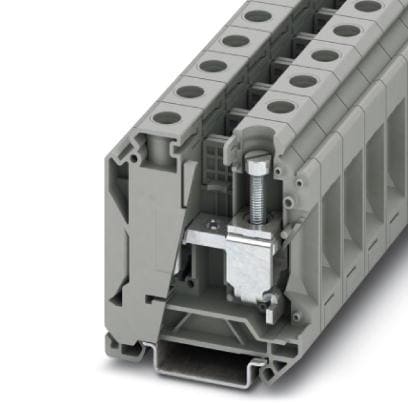

PHOENIX CONTACT 3074130 피드스루 터미널 블록 UK 35 N

Color: Gray

Width: 16 mm

Height: 62.1 mm

Length: 54.5 mm

Unit Weight: 51.150 g

Current Rating: 125 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 1 kV

Wire Gauge Max: 2 AWG

Wire Gauge Min: 8 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 8 AWG to 2 AWG

Connection Method: Screw

Flammability Rating: UL 94 V-2

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
