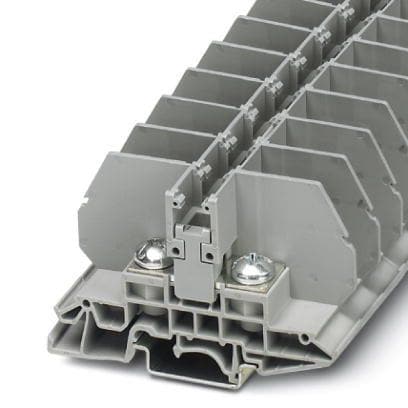

PHOENIX CONTACT 3075870 볼트 연결 단자대 RSC 6

Color: Gray

Pitch: 17 mm

Width: 17 mm

Height: 48.6 mm, 49.8 mm, 54.8 mm, 57.3 mm

Length: 80.8 mm

Unit Weight: 36.835 g

Current Rating: 125 A

Mounting Style: DIN Rail (NS 32, NS 35/7.5, NS 35/15)

Voltage Rating: 800 V

Wire Gauge Max: 2 AWG

Wire Gauge Min: 12 AWG

Wire Gauge Range: 12 AWG to 2 AWG

Connection Method: Bolt

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
