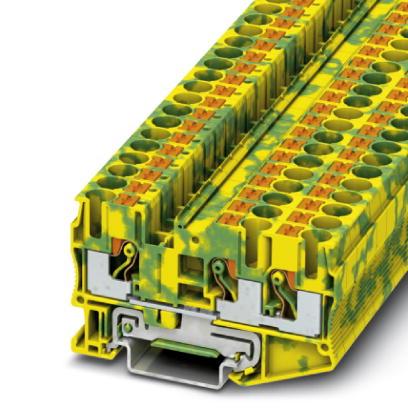

PHOENIX CONTACT 3211498 그라운드 모듈러 터미널 블록 PT 6-TWIN-PE

Color: Green / Yellow

Width: 8.2 mm

Height: 42.2 mm

Length: 74.2 mm

Unit Weight: 25.498 g

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 1 Row

Wire Gauge Max: 8 AWG

Wire Gauge Min: 20 AWG

Wire Gauge Range: 20 AWG to 8 AWG

Connection Method: Push-In

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
