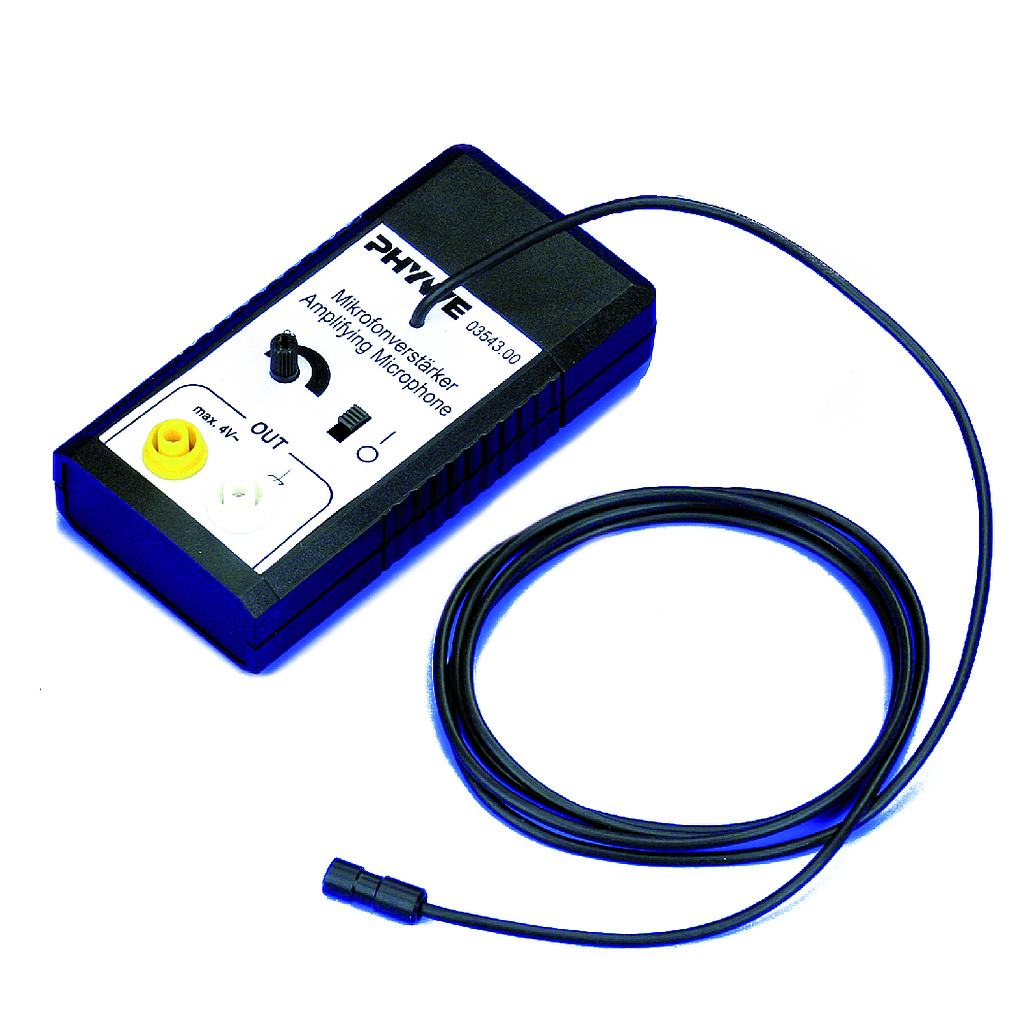

PHYWE 03543-00 Measuring Microphone With Amplifier (30 Hz -20 kHz)

- Function and Applications:

Electret capsule with 1.5 m long cable suitable for special investigations, e.g. point shaped plotting of soundfields.

- Equipment and technical data:

• Frequency range: 30 Hz -20 kHz

• Sensitivity: 6.0 mV/Pa at 1 kHz

• Gain: 0 -1000 in phase with sound signal

• Signal output: 4V max. at 3 Ohm

• Dimensions: (mm) 120 x 25 x 60

• Required accessory: 9 V battery

Datasheet
