PHYWE 25264-88 Student set Electricity / Electronics 1 with Building Blocks (grades 7-10)

- Function and Applications:

Basic set allowing the performance of 28 experiments about the following topics:

• Electric Circuits (8 Experiments)

• Electrical Resistance (8 Experiments)

• Electrical Work and Power (1 Experiment)

• Tranformation of Energy (1 Experiment)

• Electrochemistry (6 Experiments)

• Safe Working with Electrical Energy (2 Experiments)

• Sensors (2 Experiments)

- Benefits:

• Complete equipment set: simple execution of the experiments

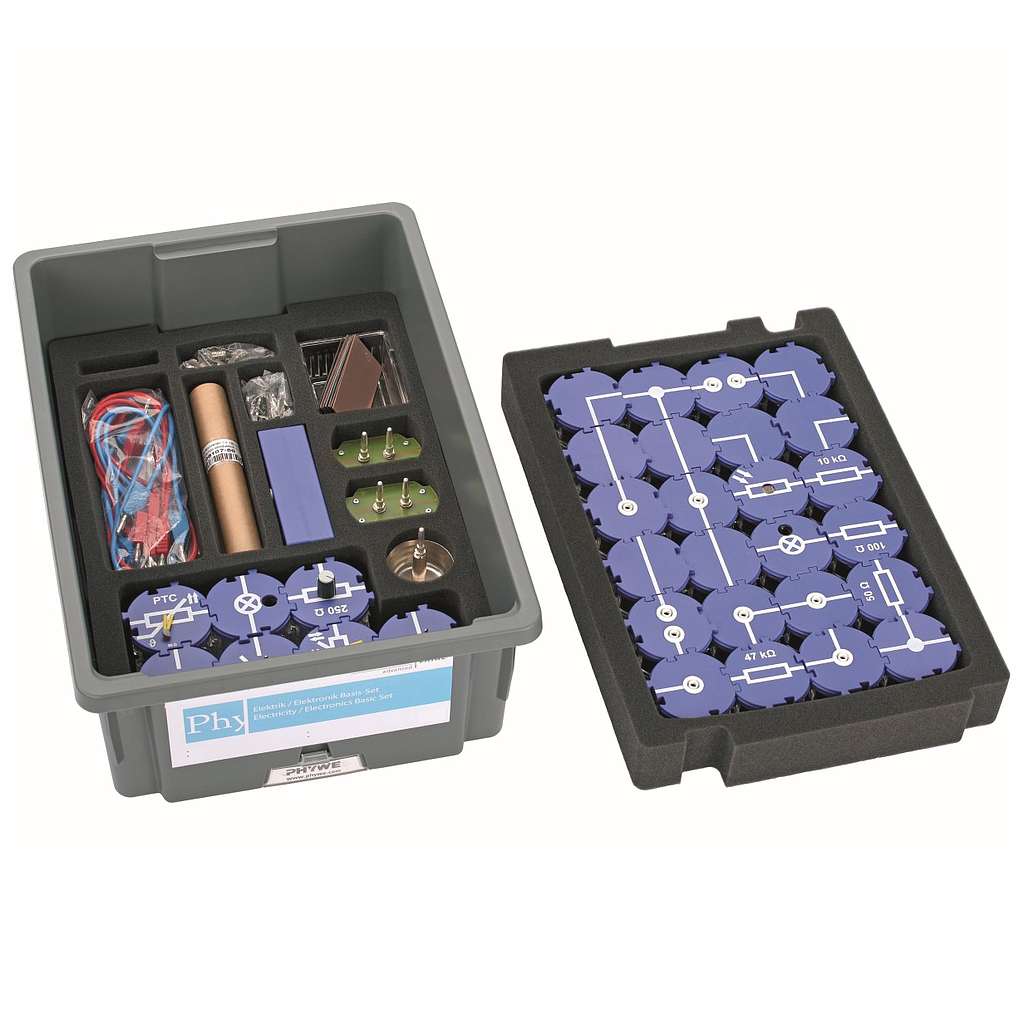

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international curriculum: all topics are covered

• The circuits are assembled directly on student's desk and the safe electric contact is guaranteed by the use of a unique puzzle block system with corrosion-free gold plated contacts. No breadboard is required.

• Rugged -PUZZLE- blocks featuring contrasted screen-printed electric symbol on top

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

• Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

- Scope of delivery:

• Straight connector module, SB: 05601-01, 4

• Angled connector module, SB: 05601-02, 4

• T-shaped connector module, SB: 05601-03, 2

• Interrupted connector module with sockets, SB: 05601-04, 2

• Junction module, SB: 05601-10, 2

• Straight connector module with socket, SB: 05601-11, 2

• Angled connector module with socket, SB: 05601-12, 2

• On-off switch module, SB: 05602-01, 2

• Change-over switch module, SB: 05602-02, 2

• Socket module for incandescent lamp E10, SB: 05604-00, 2

• Battery holder module (C type), SB: 05605-00, 2

• Resistor module 50 Ohm, SB: 05612-50, 1

• Resistor module 100 Ohm, SB: 05613-10, 1

• Resistor module 10 kOhm, SB: 05615-10, 1

• Resistor module 47 kOhm, SB: 05615-47, 1

• Potentiometer module 250 Ohm, SB: 05623-25, 1

• NTC-resistor module, SB: 05630-01, 1

• PTC-resistor module, SB: 05631-00, 1

• Bell gong on 4-mm-plug: 05673-02, 1

• Model person for electrical safety: 05680-01, 1

• Bimetal strip: 05913-00, 1

• Alligator clips, bare, 10 pcs: 07274-03, 1

• Connecting plug, 2 pcs.: 07278-05, 1

• Connecting cord, 32 A, 500 mm, red | Length: 250 mm: 07360-01, 2

• Connecting cord, 32 A, 500 mm, blue | Length: 250 mm: 07360-04, 2

• Connecting cord, 32 A, 500 mm, red | Length: 500 mm: 07361-01, 2

• Connecting cord, 32 A, 500 mm, blue | Length: 500 mm: 07361-04, 2

• Trough, grooved, w/o lid: 34568-01, 1

• Metalelectrode, diverse metals | Element: Copper: 45212-00, 2

• Metalelectrode, diverse metals | Element: Zinc: 45214-00, 1

• Metalelectrode, diverse metals | Element: Lead: 45215-00, 2

• Metalelectrode, diverse metals | Element: Iron: 45216-00, 2

- Necessary accessories:

• Student set Electrics /Electronics 1, necessary accessories for 1 group, TESS advanced Physics: 13470-88

• Student set Electrics / Electronics 1, consumables for 10 groups, TESS advanced Physics: 13471-88
