PHYWE 25269-88 Student Set Electromagnetism (Class 10-13)

- Function and Applications:

Basic set allowing the performance of 9 experiments about the following topics:

• Electromagnetic induction (1 experiment)

• Magnetic field of coils (6 experiments)

• Earth's magnetic field (1 experiment)

• Magnetic permeability (1 experiment)

- Benefits:

• Complete equipment set: simple execution of the experiments

• The equipment is stored in a rugged, stackable and compact box, allowing quick control of completeness (foam insert)

• Experimenting literature for pupils and teachers available: minimal preparation time

• Matched with international Curriculum: all topics are covered

• With the included Cobra SMARTsense Magnetic Field in combination with tablets and smartphones it is possible to acquire digital data

• Future-proof: Prepare the transition to the digital school today

• Perfectly matched to digital science lessons with tablets and smartphones

• Faster and higher learning success: The use of digital devices increases the identification and thus increases the motivation of the students

• Easy teaching and efficient learning through the digital experiment descriptions enclosed as QR codes

- Equipment and Technical Data:

• The equipment set consists of all necessary components for the experiments

• 3-axis magnetic field sensor included in the set

• Robust, stackable storage box with a foam insert fitting to the contained equipment

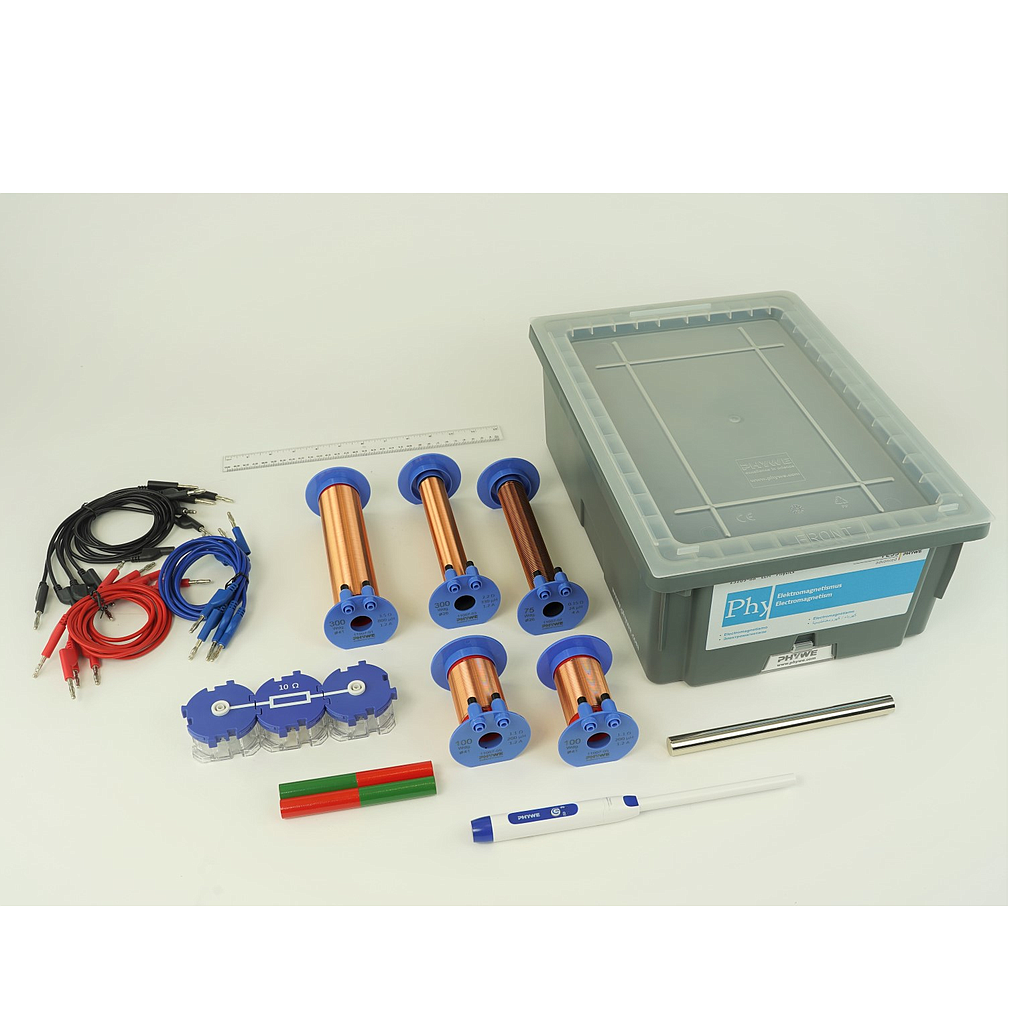

- Scope of delivery:

• Junction module, SB: 05601-10, 2

• Resistor module 10 Ohm, SB: 05612-10, 1

• Ruler, l = 30 cm: 09851-40, 1

• Magnet, rod-shaped, d = 15 mm, l = 120mm: 06319-00, 2

• Cobra SMARTsense - 3-Axis Magnetic field: 12947-00,  1

• iron core, rod-shaped, d = 16 mm, l = 200 mm: 11005-00, 1

• Induction coil,100 turns,dia.40mm: 11007-05, 2

• Induction coil, 75 turns,dia.25mm: 11007-07, 1

• Induction coil,300 turns,dia.25mm: 11007-03, 1

• Induction coil,300 turns,dia.40mm: 11007-01, 1

• Connecting cord, 32 A, 500 mm, red | Length: 500 mm:  07361-01, 4

• Connecting cord, 32 A, 500 mm, blue | Length: 500 mm: 07361-04, 4

• Connecting cord, 32 A, 500 mm, black | Length: 500 mm: 07361-05, 6

- Necessary Accessories:

• PHYWE power supply, 230 V, DC: 0...12 V, 2 A / AC: 6 V, 12 V, 5 A (13506-93)

- Recommended accessories:

• USB-C cable for Cobra SMARTsense: 07935-00

• USB quick charger with 8 USB ports: 07934-99

• Digitalmultimeter 88C+, 750V AC/DC, 20A AC/DC, 2000MΩ, 200µF, 10 MHz, 20H, -:20...1000°C: 07029-12
