Weight (interface / vibration sensor / microphone) 120 g / 80 g / 20 g
Dimensions:
Sensor interface (inc. BNCs): 105 mm x 65 mm x 27 mm
Microphone: 43 mm x ø17 mm
Magnet (inc. fitted grub screw): 12 mm x ø18 mm
Sensor extension lead length 3 m
Battery (lithium primary cell) CR123(A) 3 V (user-replaceable)
Battery life (shelf / vibration mode / microphone mode) 10 years / 6 months / 2 months
Maximum measurable acceleration ±5 g
Vibration frequency range (3 dB) DC to 350 Hz
Shock survivability (accelerometer head) 10 000 g
Temperature range (operating)
accelerometer head
–40 °C to 85 °C
Thread mounting (accelerometer) ¼” x 28 UNF
Microphone sensitivity 45 mV/Pa, nominal, at 1 kHz
EMC approvals CE: Meets EN61326-1:2006

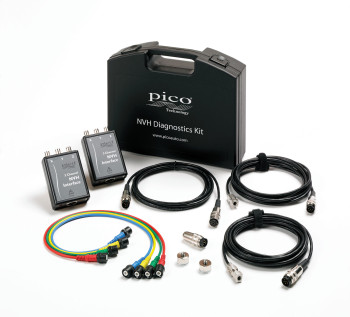

Your PicoDiagnostics NVH Kit contains the following items:
TA259 3-output NVH interface unit x2
TA096 Mounting magnet for accelerometer x2
TA143 MEMS accelerometer x2
TA243 Cable: insulated BNC to BNC 0.5 m blue
TA244 Cable: insulated BNC to BNC 0.5 m red
TA245 Cable: insulated BNC to BNC 0.5 m green
TA260 Cable: insulated BNC to BNC 0.5 m yellow
TA144 Microphone for NVH kit
TA145 Sensor extension cable for NVH interface unit
PA110 Foam tray for NVH kit x2
