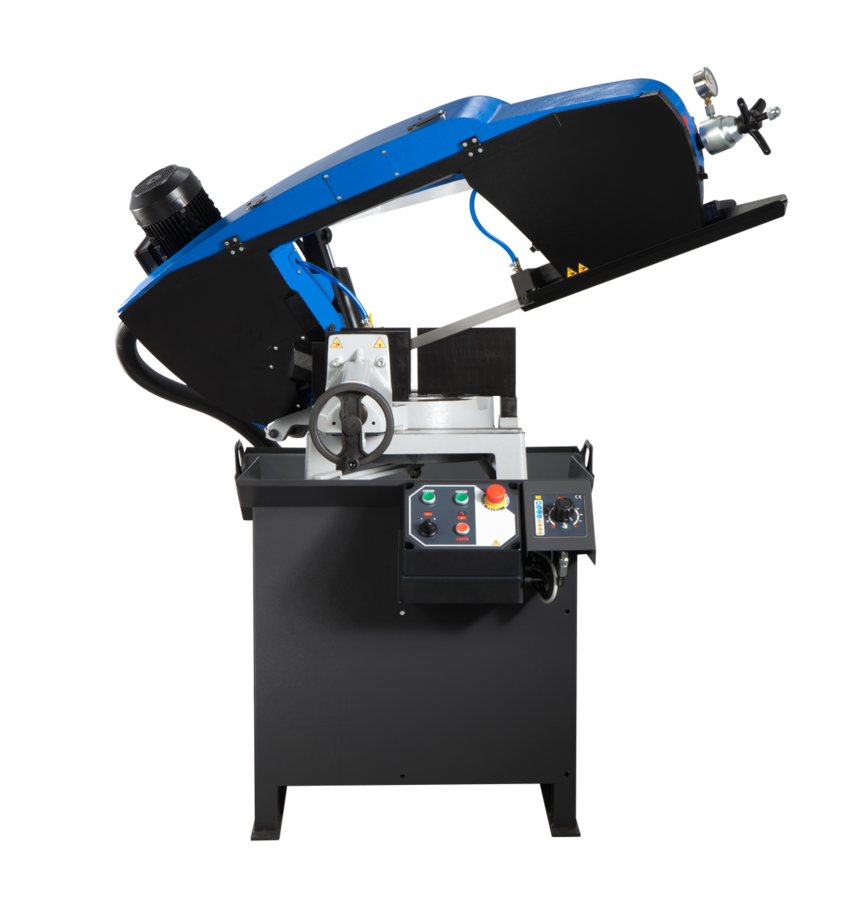

Pilous ARG 300 plus E.H. 금속용 밴드쏘 - 유압 중력식 (40/80 m/min, 910 mm)

Cutting angle:

-  At 90°

Round: 300mm

Square: 290mm

Rectangular: 360 x 190mm

-  At -45°

Round: 220mm

Square: 190mm

Rectangular: 240 x 100mm

-  At +45°

Round: 240mm

Square: 190mm

Rectangular: 240 x 160mm

-  At +60°

Round: 155mm

Square: 150mm

Rectangular: 150 x 150mm

Main motor: 400 V, 50 Hz, 1.2/1.55 kW

Pump motor: 400 V, 50 Hz, 0.05 kW

Hydraulic motor unit: 400 V, 50 Hz, 0.18 kW

Saw blade speed: 40/80 m/min.

Working height of vice: 910 mm

Coolant tank: cca 15 l

Machine dimensions (min.): 1840 x 890 x 1520 mm

Machine dimensions (max.): 2210 x 1720 x 2150 mm

Machine weight: 478 kg
