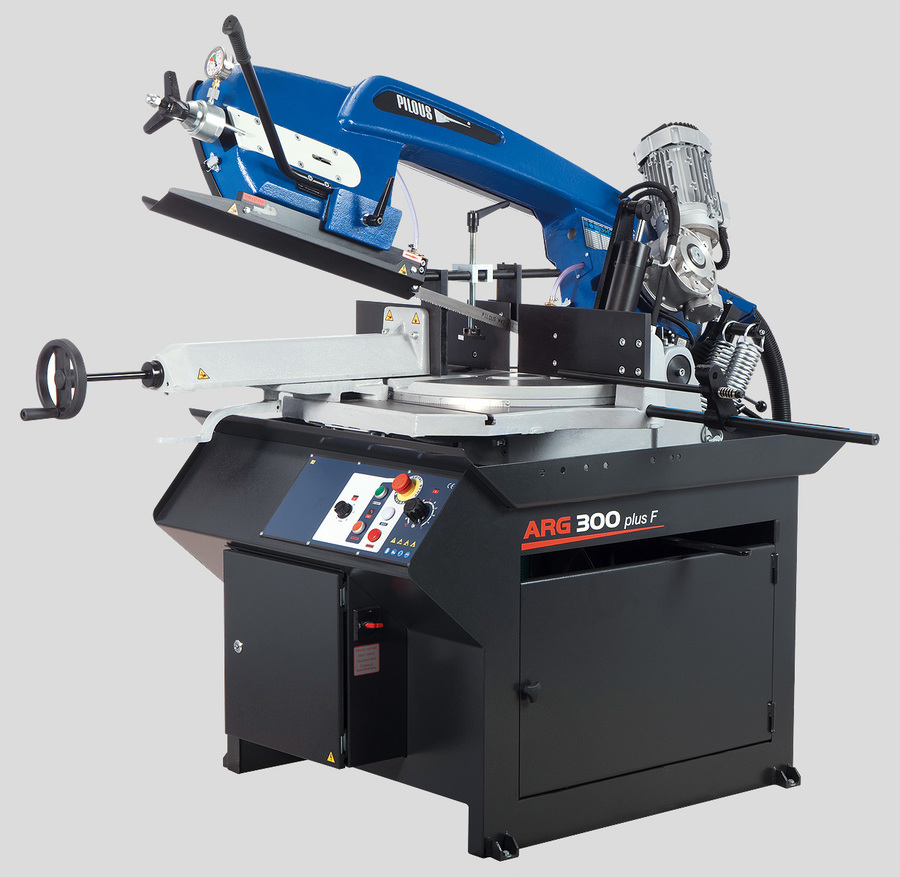

Pilous ARG 300 plus F 금속용 밴드쏘 - 중력식 (15 – 90 m/min, 910mm)

Cutting angle:

At 90°

Round: 300mm

Square: 290mm

Rectangular: 375 x 190mm

At -45°

Round: 220mm

Square: 195mm

Rectangular: 240 x 100mm

At +45°

Round: 240mm

Square: 225mm

Rectangular: 240 x 160mm

At +60°

Round: 155mm

Square: 150mm

Rectangular: 150 x 150mm

Main motor: 400 V, 50 Hz, 2.2 kW

Pump motor: 400 V, 50 Hz, 0.05 kW

Saw blade speed: 15 – 90 m/min.

Working height of vice: 910 mm

Coolant tank: cca 15 l

Machine weight: 625 kg
