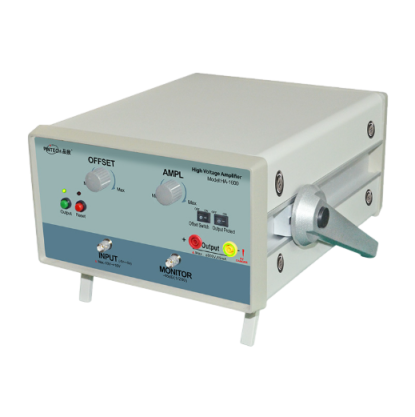

Pintech HA-1600 고전압 앰프 (200kHz, 1600Vp-p)

Output Voltage( DC Max): 800V DC

Output Voltage(AC Max): 1600Vp-p

DC Current(Max): 65mA

AC Current(Max): 130mAp-p

Output Power(Max): 52VA

Frequency response (Bandwidth): 200kHz/800Vp-p

Slew Rate: 1000V/μs

Output impedance: 10Ω

Protect resistor: 5kΩ/60watt

Safe Loading: ≧12.5kΩ/1600Vp-p

Input Voltage upper limit: -5V~+5V(Max -10V~+10V)

AMPL: 200

OFFEST: ± 800V

Monitor: 200:1

Output protection:

1. Output dedicated FUSE

2. Protection SW (switch)

3. High-speed overload protection circuit

Weight: 5.4kg

size: 320*260*150g
