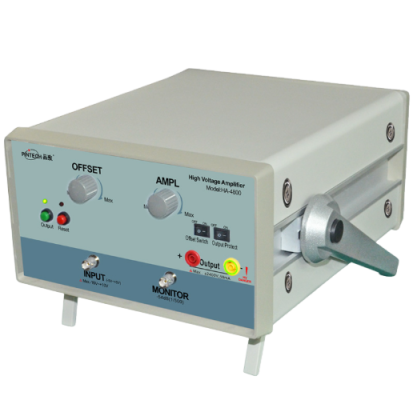

Pintech HA-4800 고전압 앰프 (5kHz, 4800Vp-p)

Output Voltage( DC Max): 2400V DC

Output Voltage(AC Max): 4800Vp-p

DC Current(Max): 50mA

AC Current(Max): 100mAp-p

Output Power(Max): 120VA

Frequency response (Bandwidth): 5kHz/ 2400Vp-p

Slew Rate: 60V/μs

Output impedance: 100Ω

Protect resistor: 120kΩ/120watt

Safe Loading: ≧48kΩ/4800Vp-p

Input Voltage upper limit: -5V~+5V(Max -10V~+10V)

AMPL: 500

OFFEST: ± 2400V

Monitor: 500:1

Output protection:

1. Output dedicated FUSE

2. Protection SW (switch)

3. High-speed overload protection circuit

Weight: 5.4kg

size: 320*260*150g
