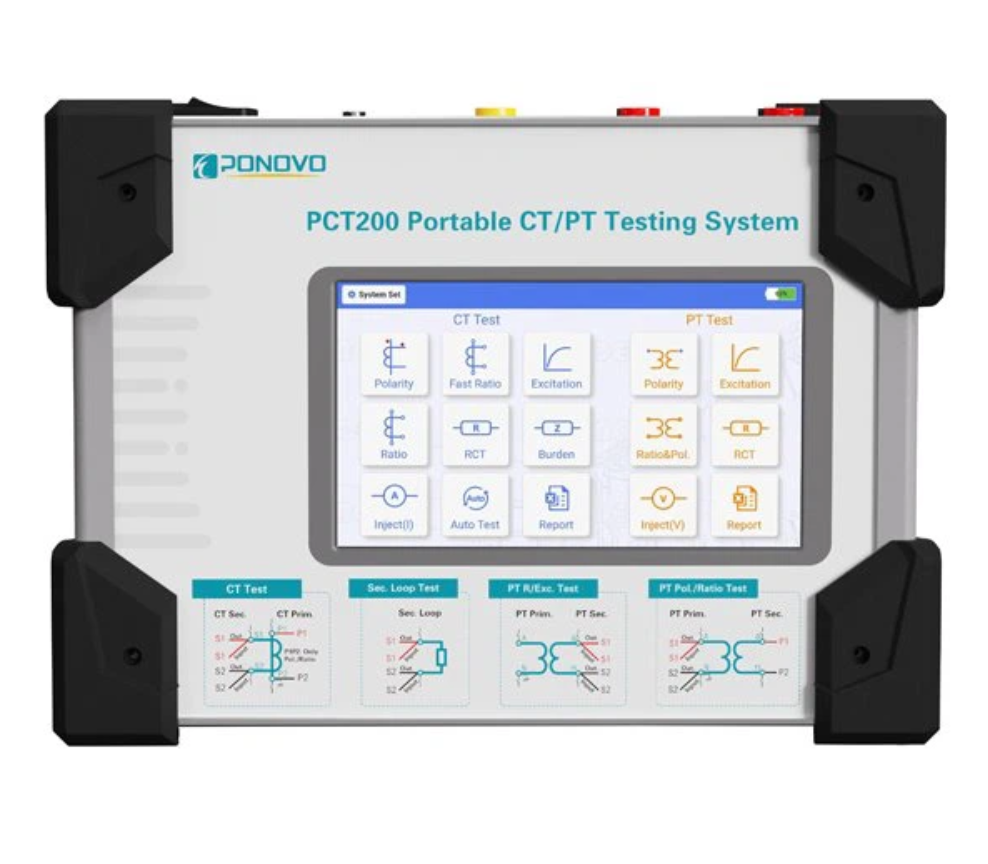

Ponovo PCT200X Portable CT/PT Testing System

Application: Test M/P/TP type CT and PT

Output voltage: 0-130V

Output current: 0~5Arms (15 Apeak)

Output power: 0~500VArms

Ratio test:

Ratio test range: < 50000:1

Ratio test accuracy: ±0.05% Typ. ±0.1% Gur.

Max. knee point voltage: 45kV

Phase displacement:

Accuracy: 1min Typ. 3min Gur.

Resolution: 0.01 min

Winding resistance:

Range: 0.01-1000Ω

Accuracy: 0.02%rg. + 0.03%rd. Typ.; 0.05%rg. + 0.05%rd. Gur.

Resolution: 1mΩ

Turn ratio:

Accuracy: 0.05% Typ. 0.1% Gur.

Resolution: 0.0001

Temperature Compensation: -20 ℃-120 ℃

Accuracy limit factor (ALF): Yes

Instrument security factor (FS): Yes

Remanence factor (Kr): Yes

Secondary loop time constant (Ts): Yes

Saturated inductance (Ls): Yes

Excitation characteristic curve: Yes

Rated symmetrical short-circuit current factor (Kssc): Yes
