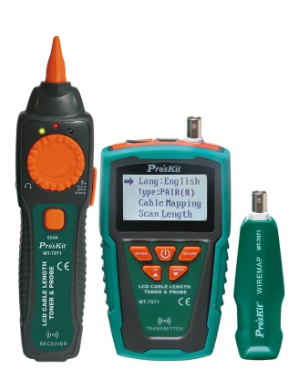

Transmitter Unit
Display: LCD 128 x 64 Dots (50 x 27.5 mm)
Language: English, Chinese
Connection Ports
RJ45 x 2 ports
BNC x 1 port
Battery Power: 9V x 1 (6LR61 or 6F22)
Network Cable
Cable Types: CAT5E, CAT6, CAT6A, CAT7 Ethernet cable, Telephone cable, Coaxial BNC cable
Maximum Range: 300 m
Display: LCD: R&M 1-8/G
Cable Length Measurement
Cable Types: CAT5E, CAT6 Ethernet cable, Telephone cable
Maximum Range: 2.5 m – 200 m
Units: m/yard/feet
Accuracy: ±5%
Cable Probe
Cable Types: CAT5E, CAT6, CAT6A, CAT7 Ethernet cable, Telephone cable, Coaxial BNC cable
Detection Range: 600 m
Frequency: 455kHz
Maximum Signal Voltage: 9V ± 1Vp-p
Flash Port
Blinking Frequency: 3s/ time
Link Test: 10M/100M/1000M, FDX/HDX, Auto Nego/ Non-Auto Nego
Backlight: 5s/10s/15s/on/off
Auto Turn-off: 15 minutes/30 minutes/1 hour/OFF
Working Current: ≤ 150mA
Protection: ≤ 60V DC
Dimensions: 138 x 80 x 35 mm
Receiver Unit
Switch: 4 positions (Battery light/NCV/Off/Scan)
Button: 1
Response Frequency: 455kHz
Sound: ≥85 dB
Receiving Signal: Noise elimination
Tone Type: 1 type
Sensitivity: Adjustable with a variable resistor
Indicators: LED x 3
Flashing Light: LED x 1
Connection Ports: RJ45 x 1, Audio port 3.5mm
Battery Power: 9V x 1 (6LR61 or 6F22)
Working Current: ≤ 100mA
Dimensions: 202 x 50 x 32 mm
Remote Unit
Connection Ports: RJ45 x 1, BNC x 1
Dimensions: 106 x 32 x 30 mm.
