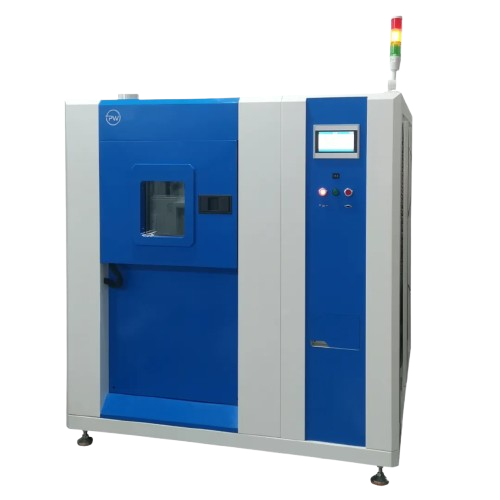

PW Instruments PW-CTS3-250-55W Three Chamber Thermal Shock Tester (250L,30KW)

Cooling mode:water-cooled

Test mode: pneumatic dampers switch 3 temperature zones

Nominal content volume: 250L

Opening mode: single door (right open)

Inner box size: W700 × H700 × D500mm (width X height X depth)

Outer box size: W1500×H2300×D1850mm (excluding the protruding part around)

Power supply: AC380V about 30KW

Energy consumption: 85 ℃ constant temperature for 60 minutes ≈ 6KWh, 0 ℃ constant temperature for 60 minutes ≈ 7.8KWh

-20℃ for 60 minutes ≈ 8.5KWh, -40℃ for 60 minutes ≈ 10.7KWh

Number of compressors/power: 4 sets 3KW/set

Body color: white

Total weight of machine: about 950KG

Working noise: A sound level ≤ 75dB(A)

(500mm from the surface of the equipment and the operating position respectively)

High-temperature chamber:

preheating upper temperature: +180℃

warming time: room temperature → +180 ℃ ≤ 22min

Note: The heating time is the performance of the high-temperature box when operating alone.

Low-temperature chamber:

pre-cooling lower temperature: -70℃

cooling time: room temperature → -70 ℃ ≤ 70min

Note: cooling time for the performance of the low-temperature box operating alone.

Test area

high-temperature shock temperature range: +45 ℃ ~ +150 ℃

low-temperature shock temperature range: 0 ℃ ~ -50 ℃

fast temperature range: 1 ~ 20 ℃ / min

Temperature fluctuation:≤±0.5℃

Temperature uniformity:≤2.0℃

Temperature deviation:±2.0℃（≤+150℃）,±3.0℃（＞+150℃）

Impact recovery time: ≤ 5min or less to complete

Temperature stabilization time: ≤ 0.1t1 (t1 is the residence time, that is, the high-temperature box temperature should be maintained under the high-temperature TB for a specified period of time, t1 contains temperature stabilization time)

Blower door conversion time: t2 < 10 seconds or less to complete (t2 for the test sample from the low greenhouse conversion time for the high greenhouse)

Box mid-level wind speed: ≤ 2m / s

Test load: 160kg

PRODUCTS DETAILS

Thermal Shock Tester is suitable for solar photovoltaic modules, batteries, automotive components, LED photoelectric, semiconductor, aviation, automotive, home appliances, scientific research, and other fields of essential test equipment for testing and determining the parameters and performance of electricians, electronics and other products materials for high and low-temperature test after the change of temperature environment shock.

For aerospace, aviation, electronics, automotive, batteries, and other products and quality control institutes, research institutes, universities, and other test units to provide virtual space, simulate the real environment, product testing, verification of research and development results, the test chamber is to shorten the development cycle, improve product quality and reliability of the indispensable assistant.
