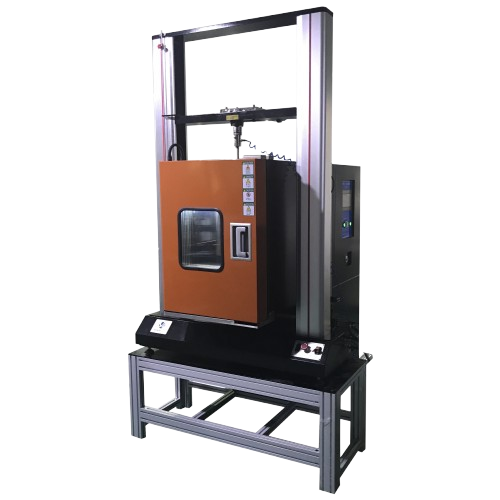

PW Instruments PW-T1-128-40M High & Low Temperature Tensile Tester (2KN,-70℃~150℃)

Capacity: 10N, 20N, 50N, 100N, 200N, 500N, 1KN, 2KN

Temp. Rang: 0, -20, -40, -60, -70℃~150℃

Display: Computer display mode

Force Resolution: 1/250,000

Force Accuracy: ≤±0.5%

Stroke Resolution: 0.005mm

Control Mode: All computerized operation mode

Temp. Control: PID automatic calculation, stable error

Display Accuracy: 0.1℃

Temp. Accuracy: ±1℃

Circulation System: Fan force circulation system

Heating System: SUS304 stainless steel heat radiation type of heater

Protection Device: Leakage and overload protector, compressor over protector, humidifier temperature protection, temperature limit protection device

Chamber Material: SUS#304 stainless steel

Test Stroke: 650mm

Test Width: ￠140mm

Chamber Dimension: 40×40×80cm(W×D×H)

Test Speed: 0.5～500mm/min, set by computer, with up & down fast adjustment button of grips

Force Unit Switch: Kgf, N, Ibf, g, ton, Mpa

Stop Mode; Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Dimension: 100×120×280cm(W×D×H)

Machine Drive: Servo motor drive, synchronous wheel and precision ball screw drive

Power: 400W

Machine Weight: Approx 420kg

PRODUCTS DETAILS

All-in-One Mechanical Testing Platform

This system integrates multiple mechanical tests into a single configuration, including tensile test, compression test, bending, tearing, shearing, peeling, and pressure evaluation. It eliminates the need for multiple machines, making it ideal for labs and manufacturers dealing with various materials such as metals, plastics, adhesives, and polymers. This consolidation enhances workflow efficiency, lowers equipment investment, and simplifies operation in quality control and R&D environments.

Modular Chamber for Thermal Flexibility

The detachable high-low temperature chamber offers a seamless transition between ambient and thermal testing. When removed, the machine functions as a standard universal testing machine, reducing footprint and energy use. When installed, it supports tests across a wide temperature range, simulating real-world stress conditions like thermal cycling or cold start failures. This makes it highly effective for sectors such as automotive, aerospace, and electronic materials.

Data-Driven Control and Sensing

The PC-based software system provides advanced testing modes and real-time analysis. Users can monitor metrics such as tensile force, displacement, yield strength, and modulus of elasticity. The interface supports curve plotting, video capture, and structured database storage for easy reporting. Additional sensor integration is available for temperature or strain tracking, making it a powerful tool for comprehensive materials analysis and compliance testing.

Application:

The universal tensile testing machine is specially improved for environmental testing. The tensile testing machine is equipped with a high and low temperature test box, which can test tensile strength, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance in different temperature environments. When using the room temperature test, the high temperature box can be removed to increase the use of space and convenience.

Software Functions:

Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers; can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters; can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.
