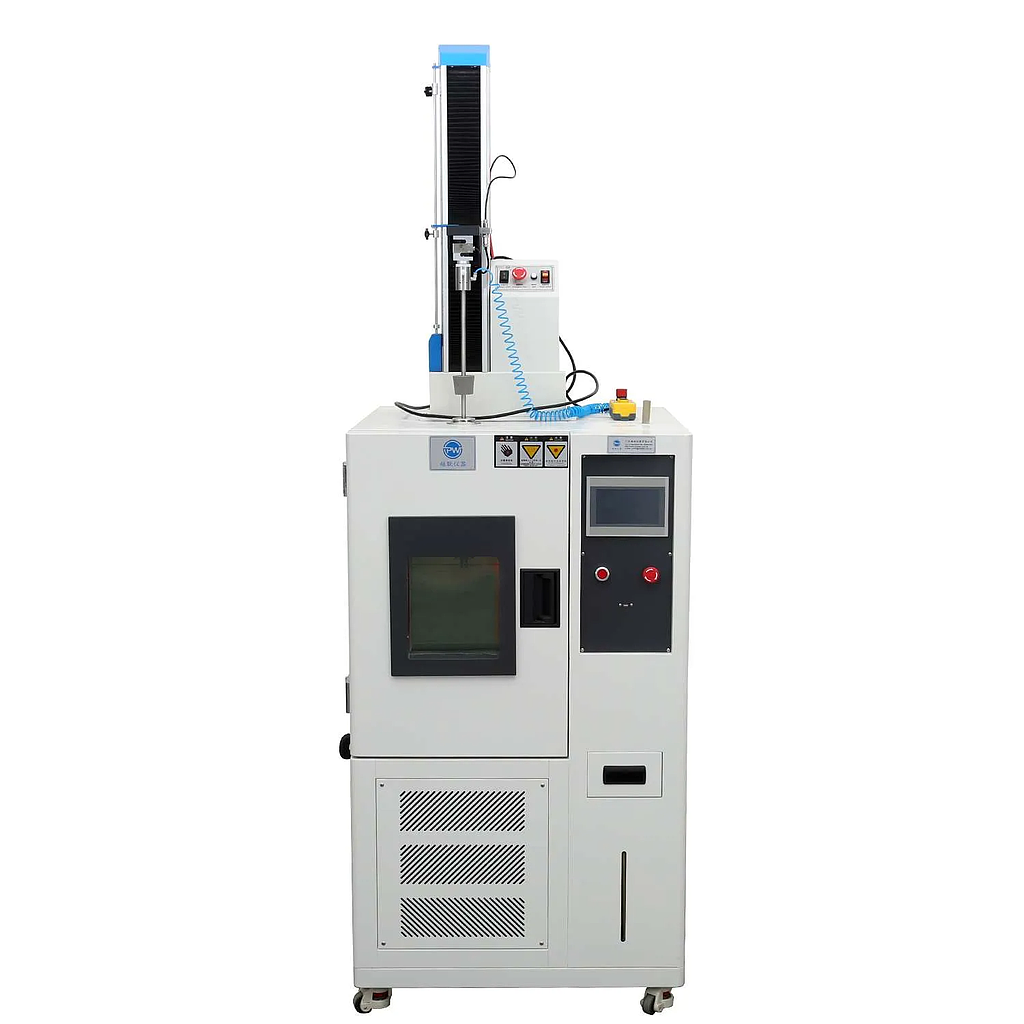

PW Instruments PW-UCS80-40 High Temperature Tensile Strength Chamber (1kN)

Item :PW-UCS80-40

Capacity (MAX) : 1KN (optional 10N~1KN force sensor)

Control Method : Full computer control mode, powerful software

Unit of Force :N、kN、gf、kgf、lbf、kP、tf(SI)、tf(long)…

Unit of Length:mm、cm、Inch、m、km、um…

Force Resolution : 1/1,000,000

Accuracy :±0.1%

Stroke Resolution :1/1,000,000

Sensor Accuracy :3/10,000

Test Space : 350*350*620mm; (Customizable)

Speed Range :0.01~500mm/min; (Customizable)

Temperature Range :-40~150℃

Humidity Range :20%~98%（Optional）

Shutdown Mode :Overload stop, emergency stop key, automatic stop for test piece destruction, automatic stop for upper and lower limit setting

Machine Power:Servo motor drive

Machine Dimensions : About 800×930×2600mm (W×D×H)

Machine Net Weight : About 85KG

Power : 400W

Power Supply :220V 50~60HZ

Machine Accessories :1 network port communication cable, 1 software

Optional Accessories : Computers, peel-off steel sheets, rolling wheels, other peel-off jigs

PRODUCT DETAILS

Tensile Strength Chamber Application:

The machine is specially improved for environmental testing.The tensile machine is equipped with a high and low temperature test box，which can test tensile, pressure, tearing, shearing, peeling strength, deconvolution strength, ring initial adhesion strength and other physical performance in different temperature environments. When using the room temperature test, the high temperature box can be removed to increase the use of space and convenience.

Tensile Strength Chamber Software Functions:

The measurement and control system is the latest system developed in 2018, also known as the international version. Reflects the latest requirements of global users for testing machines; powerful and easy to use in language conversion and automatic translation of test data, unit conversion, standard management, sample shape management, test personnel management, data processing, report generation, etc. specialty. This system adopts Microsoft’s latest development tool VisualStudio .Net 2005, which has powerful functions and friendly interface. It is a development tool for the new generation of operating system Windows XP/Vista; it meets the use of more than 90% of the world’s regions and population and fully supports the test machine International requirements of manufacturers and users.
