PW Instruments PW-US30 High-Speed Peel Testing Machine (500N, 0.1-30000mm/min)

Capacity selection: 5N、10N、20N、50N、100N、200N，500N

Display: Computer display mode

Force Resolution: 1/500,000

Strength precision: 0.3%

Stroke resolution: 1/500,000

Acquisition Rate : 50HZ

Control method: Full computer operation mode

Test stroke: 800mm

Test Width: 100mm

Test Speed: 0.1-300: 0mm/min (can be set)

Force unit switching: kgf，N，Ibf，g，ton，Mpa

Stop Mode: Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function

Machine Dimension: 1530 x 470 x 460mm (W×D×H)

Machine Drive: The machine is powered by an AC servo motor, and the moving components are composed of ball screws and high-precision slide rails

Power: 400W

Machine Weight: About 85kg

Power Supply: 220V 50/60HZ 5A

Standard Configuration: 1 set of grips, computer software, USB computer connection wire

Optional: Personal computer

PRODUCTS DETAILS

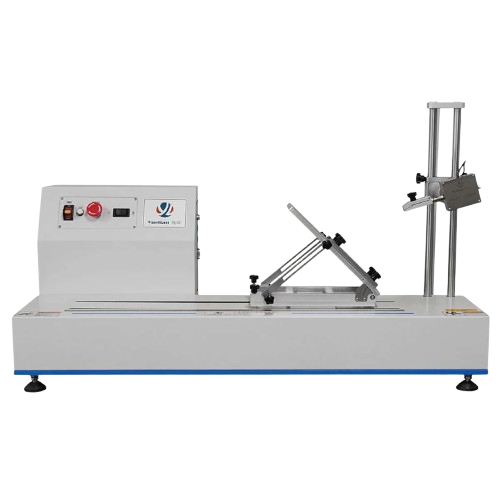

This machine is specifically created for conducting 90° and 180° peel tests, friction tests, horizontal tensile tests, and other related experiments. It features a test piece fixing plate that comes with an adjustable angle, allowing users to change the height and angle of the sensor as per their requirements. Furthermore, users can perform various peel tests at different angles using this machine.

Features:

The Test & Control System is created to function with PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines, and PC Compression testers. It can perform various tests like tensile, compression, bending, shearing, tearing, and peeling tests. The system uses a PC and interface board to collect, save, process and print the test results. It can calculate parameters such as maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus, among others. The system has features like curve processing, multi-sensor support, graphical interface, flexible data processing, MS-ACCESS database support, making it more powerful and efficient.
