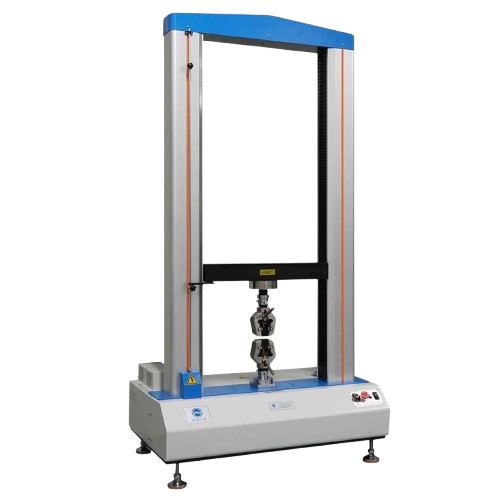

PW Instruments PW-UTM50K1 Double-Column Servo Universal Material Tensile Test Machine (50KN,700mm)

Capacity (MAX): 50KN (optional 10N~50KN range force sensor)

Control mode: full computer control mode, powerful software function

Power unit: N, kN, gf, kgf, lbf, kP, tf (SI), tf (long), etc.

Length unit: mm, cm, Inch, m, km, um, etc.

Power resolution: 1/500,000

Accuracy: ±0.1%

Travel resolution: 1/500,000mm

Effective stroke: 700mm; (customizable)

Speed range: 0.01~500mm/min; (customizable)

Test space: 420mm left and right (customizable)

Shutdown mode: overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings

Machine power: Servo motor drive

Machine size (W×D×H): 88×66×208cm

Net weight of machine: 420KG

Power: 400W

Power supply: 220V 50~60HZ

Machine equipment: 1 USB communication line, 1 software

Optional accessories: tensile fixture, compression fixture, etc.;(purchase different fixtures according to different test standards)

PRODUCTS DETAILS

Solid Dual-Column Support

The double-column frame delivers exceptional stability during tensile test, compression test, bend test, and tear test procedures, minimizing deformation and enhancing consistency. Ideal for high-load and large-sample mechanical testing.

Precision Measurement Mechanism

Combining servo control with 1/500,000 resolution and ±0.1% accuracy, this tensile strength tester system excels in capturing fine mechanical behaviors under dynamic load.

Versatile Digital Interface

Embedded software supports automatic calculation of maximum force, yield point, breaking force, deformation, yield elongation, and elastic modulus, optimized for robust analytical needs in both R&D and production environments.

Application:

This equipment is capable of conducting various tests on a wide range of materials including rubber, plastic, leather, metal, nylon thread, fabric, paper, and aviation, packaging, construction, petrochemical, electrical, and vehicle materials. It can perform tests such as tension, compression, bending, shear, adhesion, peeling, tearing, and more. This equipment is essential for quality control, incoming inspection, physical property testing, mechanics research, and material development.

Function:

1. Powerful test function, with different fixtures, it can carry out a variety of test requirements to meet the needs of users.

2. The software has more powerful functions. Various test results and test curves can be displayed and automatically marked in the interval. It can be upgraded at any time to realize positioning shift, fixed force, fixed time, repeated fatigue testing, etc.

3. The design of the machine is beautiful, generous, easy to operate, and the software has strong scalability and high accuracy.

4. Servo motor drive, high precision ball screw drive, low failure rate and simple maintenance.
