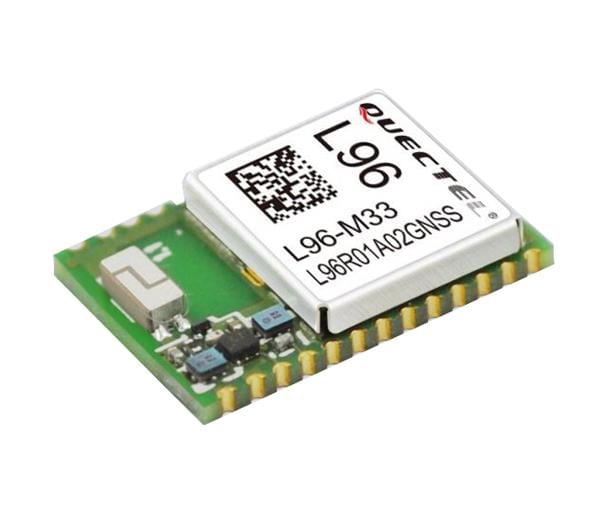

Quectel L96-M33 GPS 모듈 단일 밴드, 3 GNSS, LNA 포함, 통합 칩 안테나 (Airoha 3333)

Frequency: 1.561098 GHz, 1.57542 GHz, 1.6025625 GHz

Dimensions: 14 mm x 9.6 mm x 2.5 mm

Unit Weight: 477 mg

Interface Type: I2C, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 3.3 V

Acquisition Sensitivity: - 148 dBm

Protocol - GPS, GLONASS: GNSS

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Time To First Fix - Cold Start: 35 s
