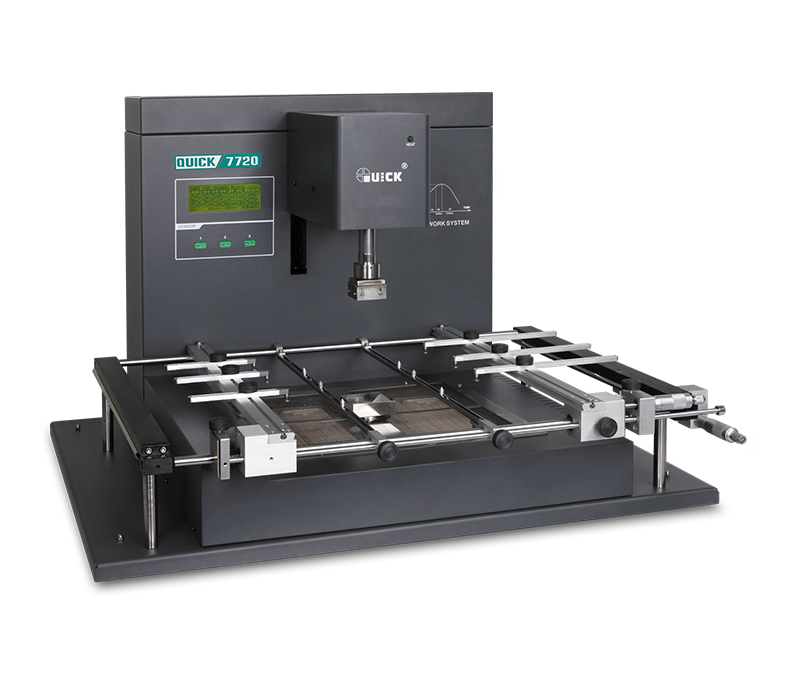

QUICK 7720 Hot Air BGA Rework System (4200 W)
제조사QUICK(이 브랜드의 다른 제품 보기)
Model7720
문의하기
안전한 결제
품질 보장
간편 교환 및 반품
배송 가능
Total power: 4200 W
Power specifications: 220 V / 50 Hz
PCB dimensions: ≤ 420 × 380 mm
Bottom radiant preheating dimensions: 330 × 360 mm
Hot air temperature range: Room temperature to 400°C (max)
Bottom preheating range: Room temperature to 400°C (max)
Top hot air heating power: 1200 W
Bottom hot air heating power: 1200 W
Bottom infrared preheating power: 400 W × 4 = 1600 W (infrared heating)
Side cooling fans with adjustable fan speed: ≤ 3.5 m³/min
K-type sensor: 3
Communication: Standard RS-232C (can connect to PC)
Equipment weight: Approximately 44 kg
External dimensions: 650 × 570 × 500 mm
