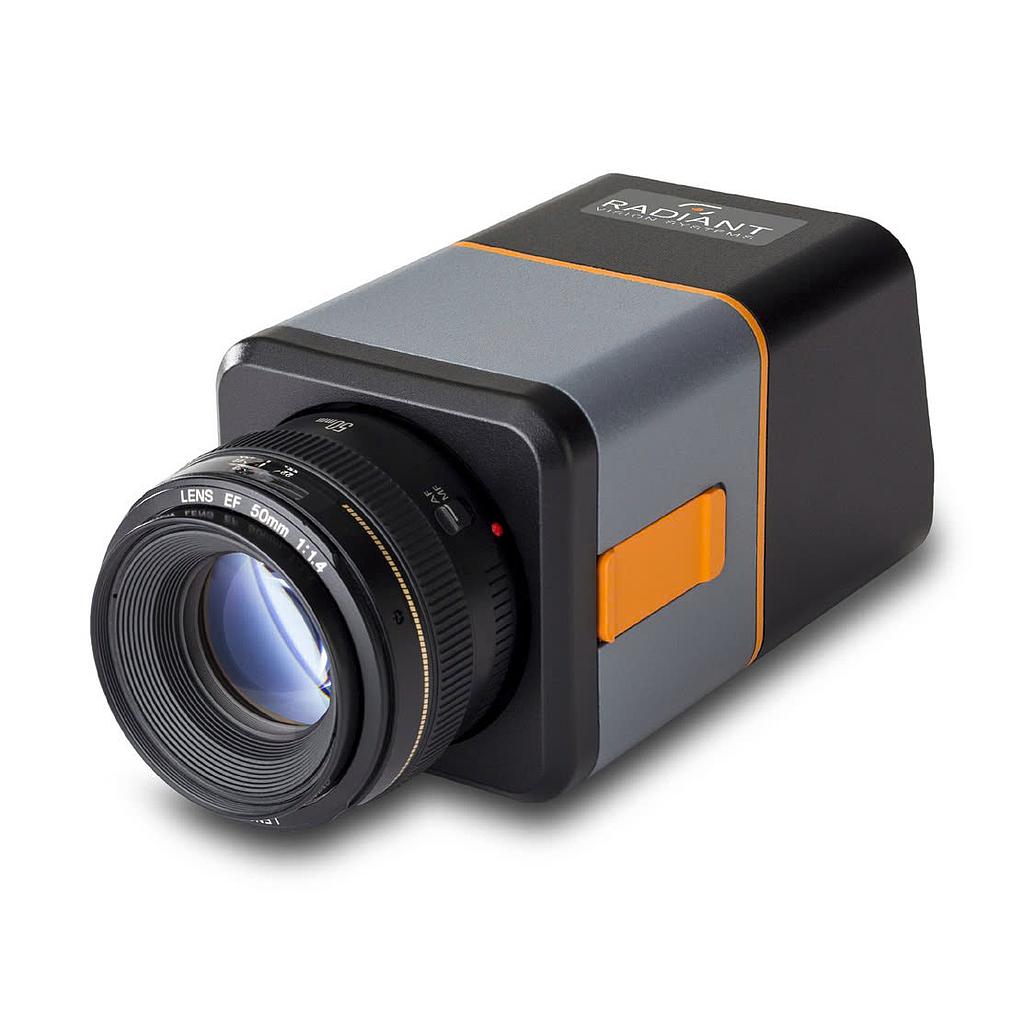

Radiant ProMetric Y45 ProMetric Y 이미징 광도계 (8192 x 5460; 44.7)

Primary Application: Production, Display Testing, Pixel-level Measurement, Advanced Vision

Sensor Pixel Resolution: 8192 x 5460

Sensor Megapixels: 44.7

Sensor Type: CMOS

System Dynamic Range (single exposure, per pixel): 66 dB (1 x 1 binning)

Luminance (Minimum)*:

+ 0.0001 cd/m2 Limit of Detection

+ 0.0002 cd/m² @ SNR = 60

+ 0.0005 cd/m2 @ SNR = 100

Luminance (Maximum): 10¹⁰ cd/m² with optional ND filters

System Accuracy**: Illuminance ± 3%; Luminance (Y) ± 3%

Short-term Repeatability:Illuminance ± 0.04%; Luminance (Y) ± 0.04%

Lens Type: Electronically controlled focus and aperture

Focal Distances Available: 35, 50, 100, 200 mm

Field of View (Full Angle, H x V degrees): 35 mm 40° x 27°; 50 mm 29° x 19°; 100 mm macro 15° x 10°; 200 mm 8° x 5°

Minimum Measurement Time***: 0.7 sec

Spatial Measurement Capabilities: Luminance, Radiance, Illuminance, Irradiance, Luminous Intensity, Radiant Intensity

Units: foot-lambert, cd/m2, nit, W/sr/m2, foot-candles, lux, lux-s, W/m2, W-s/m2, candela, W/sr

Communication Interface: 10 Gigabit Ethernet (10 GigE)

Power: External AC / DC adapter, 100-240 V, 50-60 Hz, 60 Watts

Dimensions (H x W x D): 86 mm x 86 mm x 154 mm

Weight: 1.4 kg

Operating Temperature: 15-35° C

Operating Humidity: 20 - 70% non-condensing
