Rek RK2674-100B 시리즈 초고전압 테스터 (AC/DC: 100 kV, AC: 100mA, DC: 50mA)

Test mode: AC/DC

Voltage test range: 0.00~100.00KV

Voltage accuracy: ±(5%+5 words)

Leakage current test (AC): 0~100mA

Range (DC): 0~50mA

Test current accuracy: ±(5%+5 words)

Transformer capacity: 10000VA

Time test range: 0-999S continuous setting, 0=continuous

Output waveform: 50Hz sine wave

PLC: Optional

Host dimensions (D*H*W): 540*925*650mm

Flatbed dimensions:

High-voltage flatbed truck part: 345*1070*445mm

High-voltage capacitor flatbed truck part: 480*820*700mm

Weight

Main unit part: 89.05kg

High-voltage flatbed truck part: 113kg

High-voltage capacitor flatbed truck part: 15kg

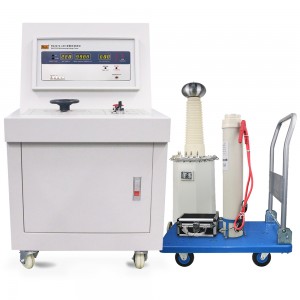

Structure: Cabinet type machine (main unit) + flatbed truck (high voltage part)

Accessories: Power cord RK00051, high voltage test cord RK00015, DC test box RK00077, RK00056 test cord, RK00052 test cord, cabinet front and rear doors/power switch key, RK26105 discharge stick RK00062 (for RK-100 series)
