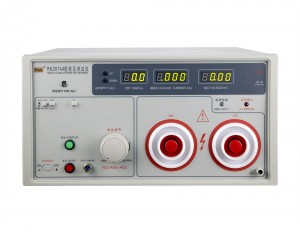

Rek RK2674A 내전압 시험기 (AC/DC：0～20kV, AC:0～2/20mA, DC:0～2/10mA)

AC

Output voltage: 0～20kV

Test current: 0～2/20mA

DC

Output voltage: 0～20kV

Test current: 0～2/10mA

Test accuracy: ±(5%+3 characters)

Test time: 0.0s～999s 0.0=continuous test

Transformer capacity: 400VA

PLC interface: Optional

Power supply requirements: AC220V±10%  50Hz/60Hz

Working environment: Temperature: (0-40)℃ Humidity ≤75%RH

Appearance style: Desktop

Dimensions (DxWxH): 492*432*225mm

Weight: 33.44KG

Accessories: High voltage test line, ground line, power line

Optional: RK101 Series Inspection Box
