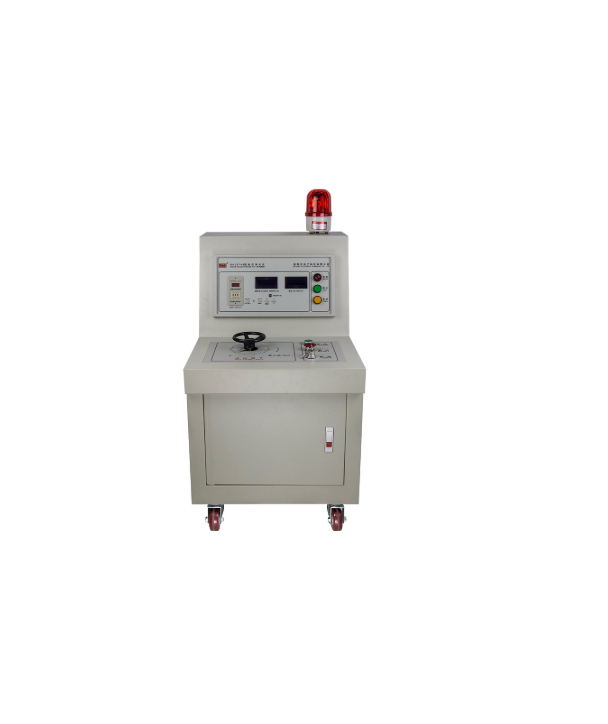

Rek RK2674B 내전압 시험기 (AC/DC：0～30kV, AC:0～2/20mA, DC:0～2/20mA)

AC

Output voltage: 0～30kV

Test current: 0～2/20mA

DC

Output voltage: 0～30kV

Test current: 0～2/20mA

Test accuracy: ±(5%+3 characters)

Test time: 1～999s±1%

Transformer capacity: 600VA

PLC interface: -

Power supply requirements: AC220V±10%  50Hz/60Hz

Working environment: Temperature: (0-40)℃ Humidity ≤75%RH

Appearance style: Cabinet

Dimensions (DxWxH): 539*650*930mm

Weight: 64.84KG

Accessories: High voltage test line, ground line, power line

Optional: RK101 Series Inspection Box
