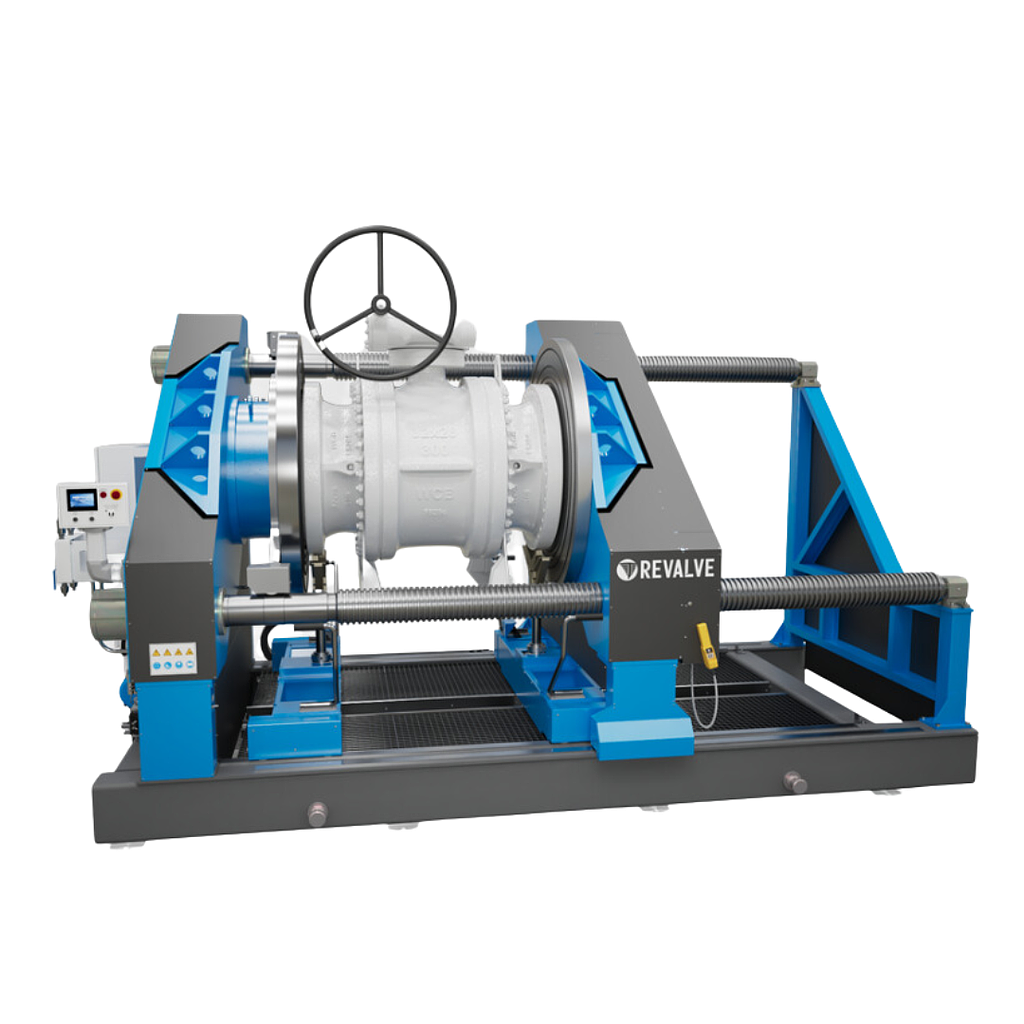

Revalve S-5-1000/600 Test Benches For Shut Off & Control Valves

Specifications:

Maximum clamping force: 600 t

Distance between test tables:(″) 170/2800 (6/110)(min/max)mm

Distance between screw rods(″): 1675 (66)mm

Electric power supply: 400/50 V/Hz

Power consumption: 20kW

Overall dimensions (LхWхH)(″):6000х3000х3000(236x118x118)mm

Weight: 10000kg

* Maximum diameter for wedge gate valves (except ball valves).
