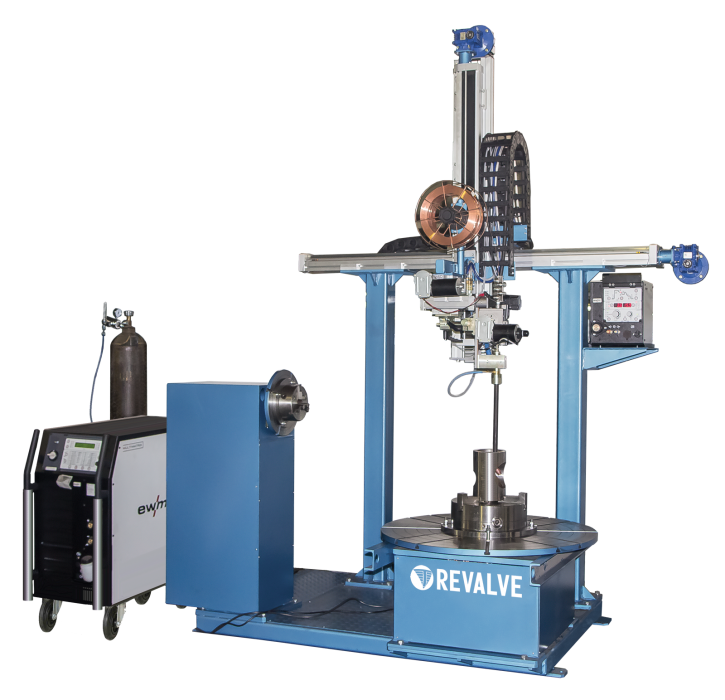

Revalve UNG-850-850-1000-KNV Machine for hardfacing/cladding and rebuilding of cylindrical and flat valve surfaces

Horizontal travel of welding head: 1400(55)mm

Travel of a welding head along “zenith”: 100(4)mm

Vertical travel of a welding head: 1000(39)mm

Rotator load capacity: 300kg

Rotator faceplate rotation speed: 0,2÷5 rpm

Electrode-wire diameter:  1,0; 1,2; 1,6(0,039; 0,047; 0,063) mm

Rated welding current, at 100% duty cycle: 420A

Welding current adjustment range: 5÷450A

Range of welding voltage: 15÷31 V

Arc protection method: gas

Maximum power consumption: 45 kW

Power supply: 400/50 V/Hz

Overall dimensions, (LxWxH):

- machine: 2295х1508х2845 (90x59x112) mm

- power source: 1100х455х1000 (43x18x39) mm

Weight (machine/power source): 1220/129kg
