Rohde & Schwarz EMC-SET2 EMC 사전 준수 세트 (5 kHz ~ 6 GHz)

Manufacturer: Rohde & Schwarz

Model: EMC-SET2

Warranty: 12 months

Frequency range: 100 kHz to 3 GHz

Measurement time: 20 ms to 1000 s

Resolution bandwidth (RBW): 1 kHz (100 Hz) to 1 MHz in 1 to 3 steps

DANL (sensitivity): –115 dBm, –124 dBm (typ.); –135 dBm

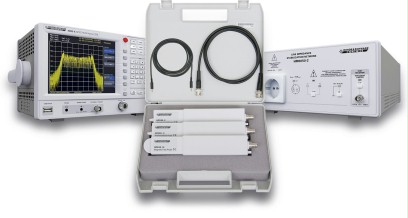

Included instrument and accessories

R&S®HMS-X Spectrum analyzer with EMC option

R&S®HM6050-2 LISN (9kHz to 30 MHz)

R&S®HZ540 Probe (100 kHz to 3 GHz)

1x E-field probe

1x H-field probe

1x high-impedance probe

EMC PreCom: EMI module part of the HMExplorer software for conducting precompliance measurements

Included:

All models include power cable, operating manual

Fact sheet
