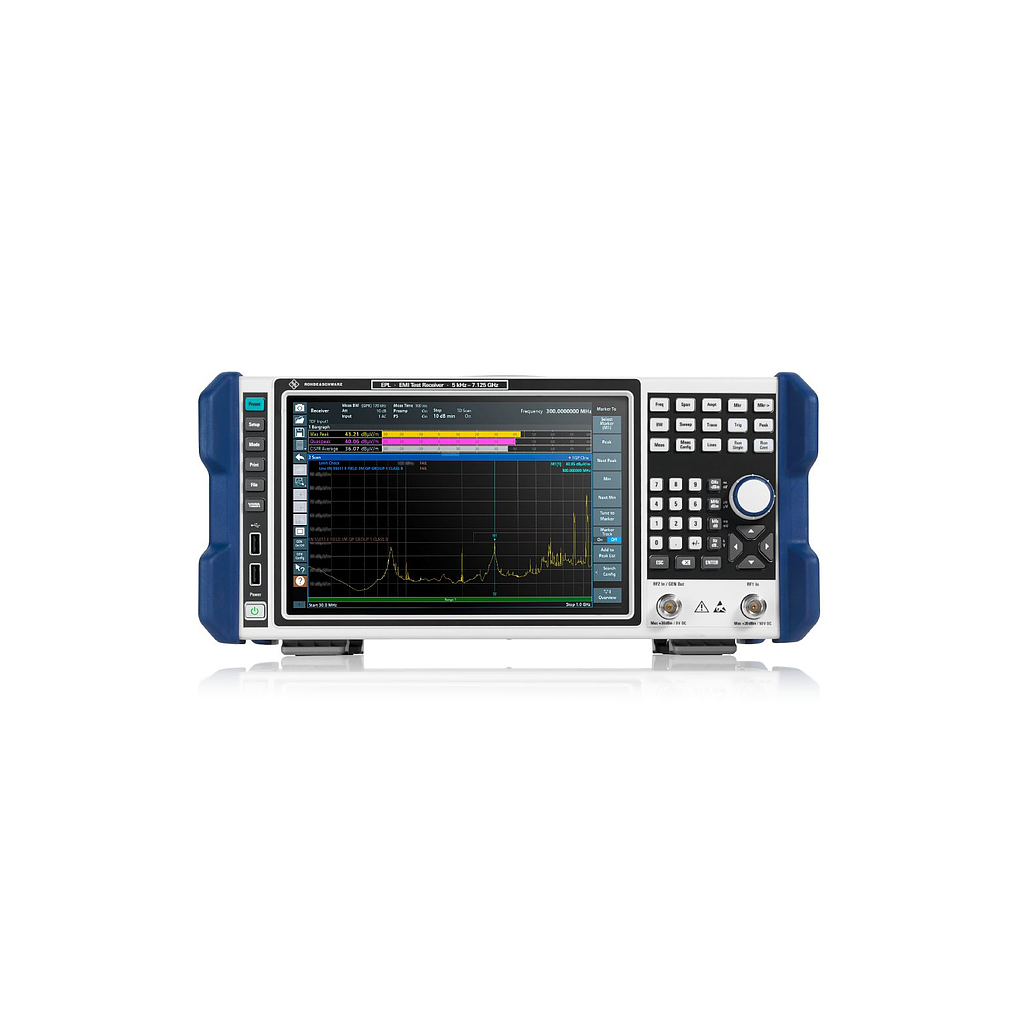

Rohde & Schwarz EPL1007 EMI 테스트 수신기 (5 kHz ~ 7.125 GHz)

Connectors: N Type - Female

Dimensions: 408 mm × 186 mm × 235 mm

Display Resolution: 1280 × 800 pixel (WXGA Resolution)

Dynamic Range: 115 dB

EMC Standards: CISPR16-1-1

Frequency: 5 kHz ~ 7.125 GHz

Impedance: 50 Ohms

Interface: Ethernet/LAN, USB, GPIB

Measurement Range: -60 to 10 dBm

Operating Temperature: 0 °C to +50 °C

Storage Temperature: -20 °C to +70 °C

Supply Voltage: 100 to 240 V

Weight: 6.9 kg (15.2 lb)

Datasheet
