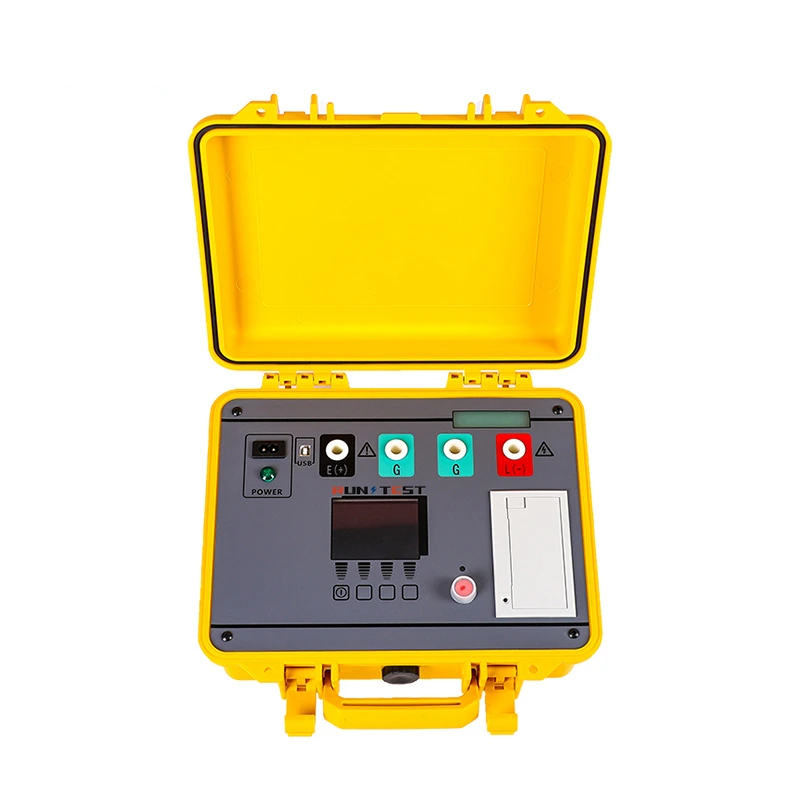

Run Test RUN-IR1526 Excellent anti-interference performance 15kv insulation resistance tester (15kV)

AC power supply: 220V±10%, 50/60 HZ, 20VA

Battery power supply: 16.8V lithium ion rechargeable battery

Battery life time: 5000V@100M, about 6 hours

Dimensions: 270×230×160 mm

Weight: 3.8 kg

Output voltage accuracy: 100% to 110% of the nominal value

Output voltage monitoring accuracy: ±5%±10V

Voltage measurement range: AC: 30–600V (50HZ/60HZ), DC: 30–600V

Voltage measurement accuracy: ±2%±3dgt

Current test range: 10mA

Current measurement accuracy: 5%±0.2nA

Short circuit current: 2 to 6mA, adjustable output

Capacitance test range: 25uF

Capacitance test accuracy: ±10%±0.03uF

Discharge rate of capacitor sample: from 5000V to 10V, 1S/µF

Protection: 2% error, shielding 500kΩ leakage resistance under 100mΩ load

Analog display range: 100kΩ to 10TΩ

Digital display range: 10kΩ to 20TΩ

Insulation alarm: 0.01MΩ to 9999.99MΩ

Insulation resistance test range and accuracy: temperature: 23±5ºC, relative humidity: 45–75%RH

Features of this Electrical Insulation Resistance Meter

1. Insulation resistance range 20TΩ@10kV

2.The short-circuit current can be adjusted up to 3mA.

3.Automatically display the test values of polarization index (PI) and absorption ratio (DAR), which can test leakage current and capacitance, as well as dielectric discharge test (DD) and step voltage test (SV).

4.Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.

5.The AC and DC voltage test function of the tested circuit can automatically identify AC or DC.

6.The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.

7.2 power modes: use lithium battery for power supply, battery life can reach 6 hours. It can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.

8.Digital filter function, use the filter function to reduce the influence when the display value is deviated due to external influence.

9.Complete protection function, and equipped with fuse blowing prompt function.

10.Data saving function, and data can be exported.
