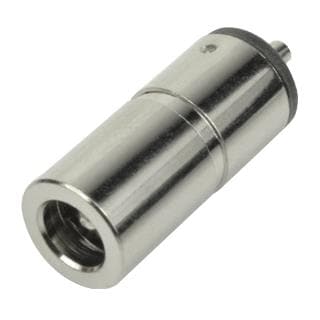

Same Sky (formerly CUI Devices) PR-1335D 리셉터클 케이블 마운트 잭 1.3x3.4mm

Unit Weight: 2.338 g

Connector Type: Receptacle

Current Rating: 5 A

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 24 VDC

Contact Plating: Nickel

Contact Material: Brass

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Cup

Flammability Rating: UL 94 HB

Insulation Resistance: 100 MOhms

Inside Contact Diameter: 1.3 mm

Outside Contact Diameter: 3.5 mm

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
