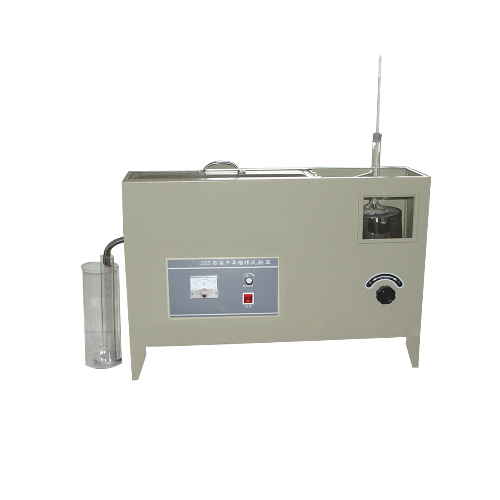

Samyon 255 Distillation Apparatus (1100W)

1. Power supply： AC(220±10%)V，50Hz

2. Distillation flask： Made of hard glass. Heat resistance is higher than 500℃. Diameter of ball is φ69mm±1mm. The diameter of bottleneck is φ16mm±1mm. The angle between branch pipe and bottleneck is 75°±3°

3. Thermometer： (0～360)℃，division value 1℃

4. Condensate tank： Made of stainless steel material. The condenser pipe is made of brass and diameter is ф16mm×1mm.

5. Condensate tank temperature control： Automatic temperature control function,temperature range (ambient+10)℃ to 60℃ free set,accuracy ±0.5℃.

6. Heat adjustment： It consists of heating device, thermal control circuit and control panel. Power 1000W，Heating rate can be adjusted continuously.

7. Measuring cylinder and mould weight： Two kinds of cylinder 10ml and 100ml. The mold weight is made of carbon steel and being placed on cylinder bottom to prevent the cylinder from floating.

8. Working environment： Room temperature-10～+35℃. Relative humidity ≤85%

9. Maximum power consumption： 1100W

10. Dimension： 710mm×240mm×470mm
