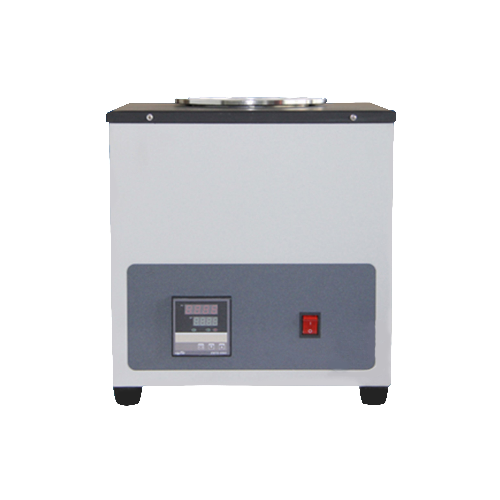

Samyon 30011 Carbon Residue Tester (1150W)

I. Main technical features

1. The instrument adopts desktop configuration. The heating furnace and controller are assembled to all-in-one machine. Small dimension and easy to use.

2. The max temperature of heating furnace can reach 520℃. It adopts digital temperature controller. The temperature control accuracy can reach ±5℃.

3. It can do four sample determinations concurrently. The test efficiency is high.

II. Main technical specifications

1. Power supply：AC（220±10%）V, 50Hz

2. Heating mode：Electric furnace

3. Heating power：1150W（230W×5）in total

4. Temp. Control range：(0～520)℃

5. Temp. Control accuracy：±5℃

6. Test furnace：One furnace with four holes

7. Ambient temperature：Room temperature～ 35℃

8. Relative humidity：≤85％

9. Maximum power consumption：1300W

10. Dimension：350mm×360mm×365mm
