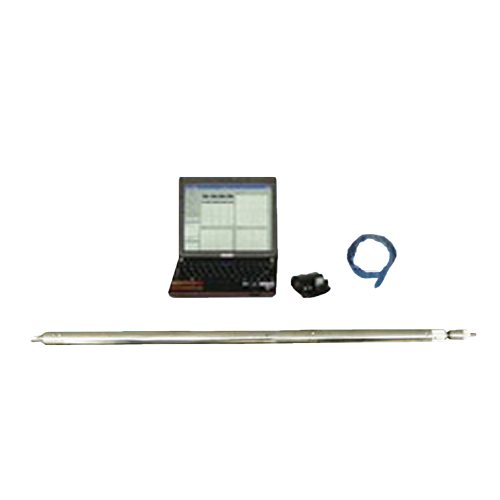

Samyon 40FWL Cable Free Horizontal Fiber Optic Gyroscope Inclinometer (0°～360°)

I. Main technical features

1. It adopts a high precision fiber optic gyroscope as the measuring component. Small size, long lifetime, good shock and vibration resistance. The zero drift is small. It is the magnetic area and the azimuth angle of the ideal orientation sensor measurement iron casing drilling.

2. It adopts a high precision double-shaft sensor to measure the dip angle. The dip angle data will be collected by 24 bit AD and processed.

3. Equipped with special software, it can show test data table, and plot plane diagram, sectional diagram, side projection diagram, and space trace diagram.

II. Main technical specifications

1. Measuring range:

Angle: +60°～-60°

Azimuth: 0°～360°

2. Measurement accuracy:

Angle measurement error: ±0.1°

Azimuth measurement error: ±0.3° (Angle changes <± 10 °, azimuth changes <± 30 °)

3. The azimuth drift is < 0.3°/h

4. Measuring depth: 1200 m (temperature <60 ℃)

5. Measuring time: > 5 h (It will continuous after full of power)

6. Measurement mode: measuring point

7. Charging Power: AC 100V～AC 240V，50Hz

8. Battery: 4-core lithium battery

9. Ambient temperature: -10℃～60℃

10. Measuring probe dimensions and weight: Φ40 mm×1800 mm
