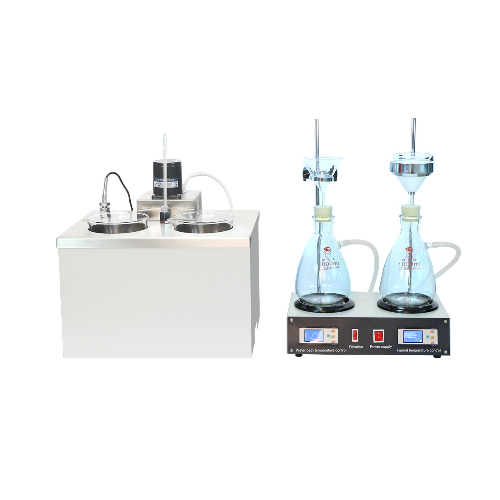

Samyon 511B Mechanical Impurity Tester (1000 W)

I. Main technical features

1. This instrument is composed of glass vessels, water bath, funnel, suction pump, motor and digital temperature controller. It has features such as small size, light weight, rapid heating rate and easy installation.

2. The temperature control funnel is small and light. It can save operation time and solvent.

3. Desktop structure. Simple design. Easy to use.

II. Main technical specifications

1. Power supply： AC 220V±10%, 50 Hz

2. Heating power for water bath： 1000 W

3. Temperature control range for water bath： Room temperature~90 ℃, adjustable

4. Bath temperature display： Digitally displayed by LED

5. Temperature control accuracy for water bath： ±1 ℃

6. Temperature control range for funnel：  Room temperature~90 ℃, adjustable

7. Funnel temperature display： Digitally displayed by LED

8. Temperature control accuracy for funnel： ±2 ℃

9. Size: (1) Control case： 390 mm× 260 mm× 590 mm

             (2) Water bath： 390 mm× 290 mm× 370 mm

10. Ambient temperature： ≤35 ℃

11. Relative humidity： ≤85%

12. Maximum power consumption： 1200 W
