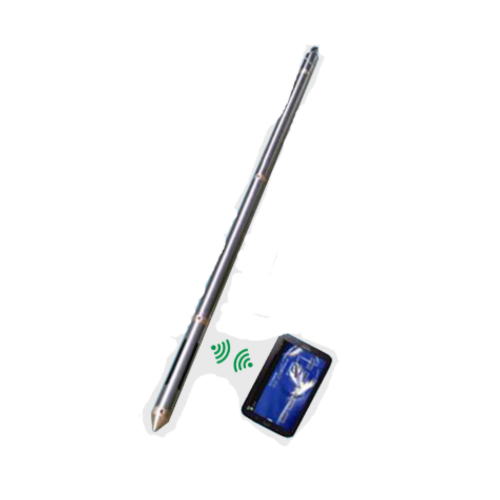

Samyon KXP-2E1 Remote Digital Inclinometer (0 ~ 50 °)

I. Main technical features

1. The instrument is made up of Android tablet computer or Android mobile phone (Above referred to as tablet PC), inclinometer probe, chargers and other components, designed to be portable; complete equipment using digital measurement technology, combined with high-performance sensors and signal processing technology, high-precision measurement results and good stability.

2. Tablet PC via Bluetooth signal control measurement, all the data stored in the measuring probe, the data is transmitted to the tablet computer processing, available throughout the drilling depth, angle and azimuth measurements and a variety of graphs. You can copy data to a computer for software processing, and print the measurement results through the printer

3. The software data processing method is scientific and can directly display measurement data, plane, profile, side projection and space trajectories and automatically save the measurement data; the entire instrument is simple and reliable, suitable for use in field operations.

II. Main technical specifications

1. Inclinometer depth: ≤1500 m

2. Parameter range and accuracy

Angle measuring range: 0 ~ 50 °, error: ±0.1°

Azimuth measuring range: 0 ~ 360 °, error: ≤5.0 ° (when the angle at 1 ~ 3 °),≤3.0 ° (when angle 3 ~ 50 °)

3. Inclinometer probe tube diameter: Φ40 mm × 1270mm

4. Weight: 15KG

5. The use of environmental temperature

Inclinometer probe: 0 ℃ ~ 75 ℃

Hand-held controller: -5 ℃ ~ 50 ℃

6. Pressure: ≥20MPa

7. Power: Built-in lithium battery.

8. Measuring mode: without the need to set in advance, inclinometer probe can measure when it received.

9. Data transmission mode: Bluetooth 2.0 transmission, remote control distance> 5 m, smart switches, no need to open the probe tube can work properly.

10. Continuous working time measurement probe :> 24 hours

11. Tablet PC: Android system, Tablet (optional or users according to the requirements of the instrument to bring their own)
