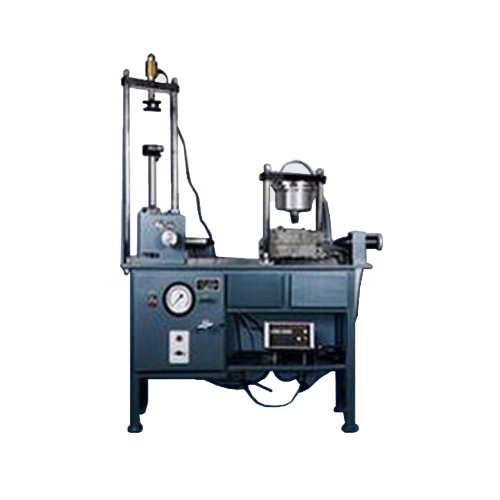

Samyon TZY-1 Civil Engineering Synthetic Material Test Apparatus (10kN)

Application:

The Apparatus is used to test mechanics performance and interaction between soil and fabric of civil engineering synthetic materials.

Specifications:

1. Specimen size: 5cm, 20cm ( large, medium and small size )

2. Friction test: 20 x 20cm2 10 x 10cm2

3. Vertical load: medium and small size : 10kN±1.5%

large size: 20kN±1.5%

4. Horizontal load: max. thrust: 10kN

max. shear displacement: 10cm

5. Vertical elongation: max. tension force: 15kN

max. tesion displacement: 10cm

6. Measuring system: vertical load:

Vertical load: readings by pressure transducer ±1.5%

Thrust and press stress: readings by pressure transducer ±1%FS

Shear displacement: readings by displacement transducer ±1%FS
