Application:

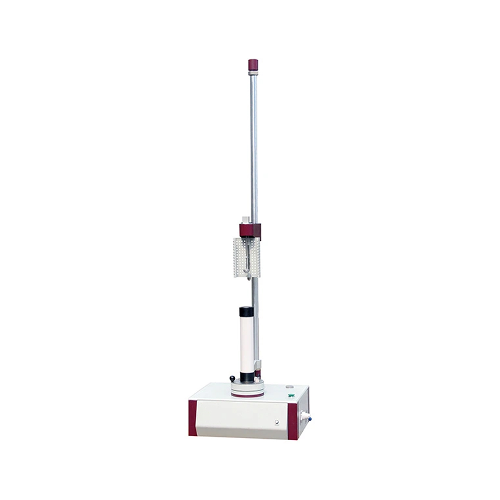

This tester is used to test to test the characters of film in the fields of quality control department, R&D department, laboratories, film manufacturers,etc. Falling impact energy: 30J Mass of the dart: 50g~2000g increasing by 5g lmpact height: 660mm(method A)1500mm(method B)
Standard:
lSO 7765-85, ASTM D 1709 and the equivalent.
Parameter:
lmpact energy: 30J
Impact height: Method A is 660mm and Method B is 1500mm
Diameter of dart head: d=38mm±1 mm in Method And=50mm±1mm in Method B
Mass of the dart: 50g to 2000g, increasing by 5g
Mass accuracy of the dart: 0.5%
Inside diameter of the clamp: 125mm
Outside diameter of the clamp: 150mm
Dimension(L×W×H): (600x500×2200)mm
