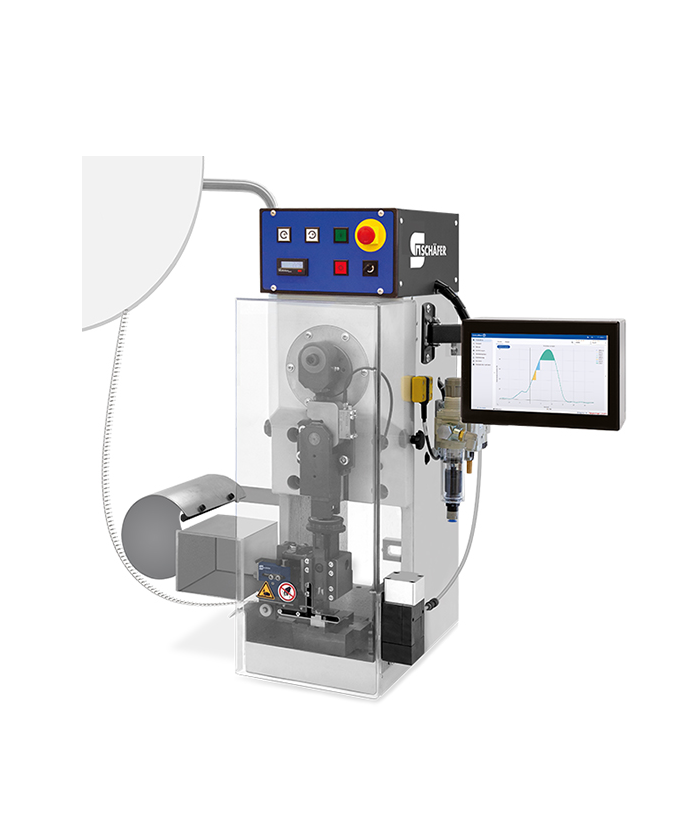

Schaefer CrimpLine 240 BASIC Crimping Machine (6 mm², 20 kN)

Processable materials

Wire:

Single-core or multi-core sheathed cables

Wire cross section: up to 6 mm² [1]

Terminals: Longitudinal or transversely belted stripes

Performance and geometry

Drive: 0.75 kW three-phase motor

Motor speed: 440 – 2000 RPM (mechanically adjustable)

Pressing force: 20 kN

Stroke: 30 mm or 40 mm

Closing height: 135.78 mm

Supplies and interfaces

Power supply: 230 V, 50/60 Hz

Compressed air: 6 bar

Dimensions and weight

Width x Depth x Height: 500 mm x 600 mm x 800 mm [2]

Weight: 167 kg [2]
