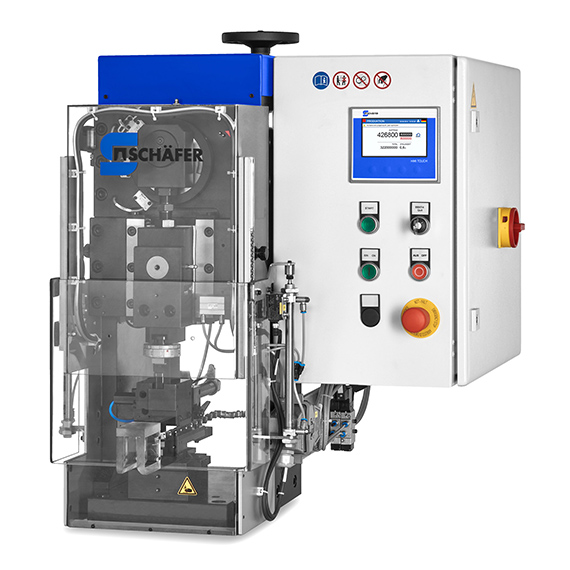

Schaefer CrimpLine 640 EXTENDED Crimping Machine (35 mm² ,50 kN)

Processable materials

Wire

Single and multi-core cables

Wire cross section: Up to 35 mm²

Terminals :Longitudinal or transversely belted stripes, single terminals

Performance and geometry

Drivez: 3 kW three-phase motor

Motor speed :1420 rpm

Pressing force :50 kN

Stroke :40 mm

Closing height: Max. 195.78 mm

Controls

HMI :STI 2015

Display :Touchscreen

Supplies and interfaces

Power supply : 3x 400 V, 50/60 Hz

Compressed air: 6 bar

Network :RJ-45

Dimensions and weight

Width x Depth x Height :760 x 890 x 760 mm

Weight :300 kg
