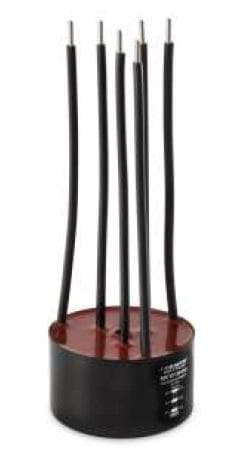

Schaffner RD7127-16-5M7 전류 보상 초크 CHOKE 16A 5.7mH/경로 CURRENT-COMPENSATED

Width: 70 mm

Height: 40 mm

Length: 70 mm

Diameter: 70 mm

Shielding: Unshielded

Tolerance: - 30 %, + 50 %

Inductance: 5.7 mH

Unit Weight: 370 g

Core Material: Ferrite

Mounting Style: PCB Mount

Test Frequency: 1 kHz

Termination Style: Wire

Maximum DC Current: 16 A

Number of Channels: 1 Channel

Maximum DC Resistance: 45.1 mOhms

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 25 C
