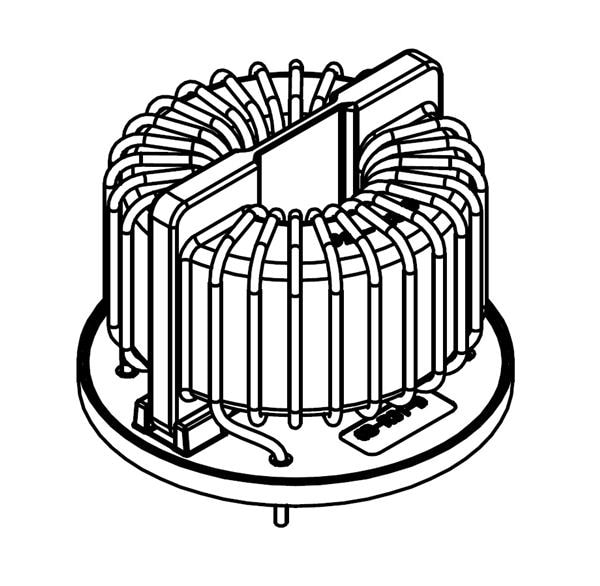

Schaffner RT8122-10-6M0 전류 보상 초크 10A 6mH 2선 수평 PCB 장착

Width: 45 mm

Height: 34 mm

Length: 45 mm

Diameter: 45 mm

Shielding: Unshielded

Tolerance: - 30 %, + 50 %

Inductance: 6 mH

Unit Weight: 80 g

Core Material: Ferrite

Lead Diameter: 1.4 mm

Mounting Style: PCB Mount

Test Frequency: 100 kHz

Termination Style: Through Hole

Maximum DC Current: 10 A

Number of Channels: 1 Channel

Maximum DC Resistance: 16 mOhms

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
